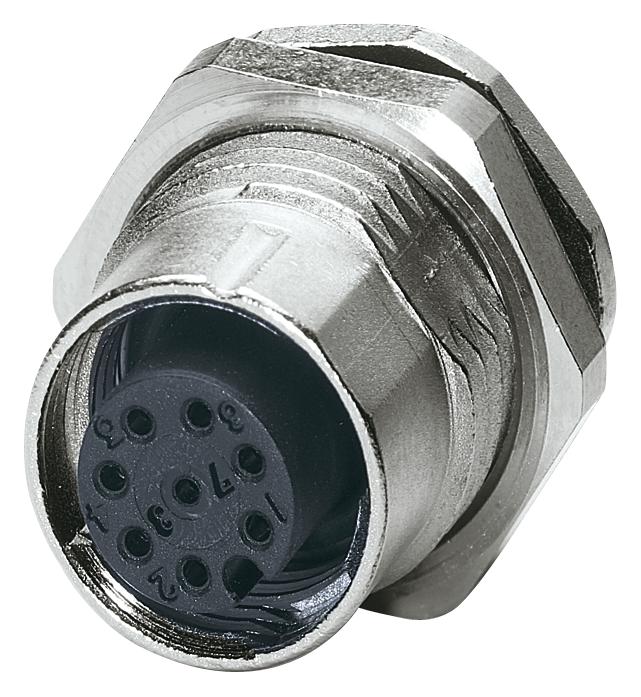

Phoenix Contact SACCDSIM12FS8CONM16 Sensor Socket
The sensor/actuator flush-type socket with 8 positions is designed for easy PCB assembly, featuring wave soldering compatibility and uniform pin coding for signal, data, and power. Its rapid SPEEDCON locking system reduces cabling time, ensuring secure connection. With a degree of protection IP67, it can operate in ambient temperatures from -25°C to 85°C, and features solder pins, Au contact surface, and zinc die-cast knurls. Suitable for applications requiring reliable signal and power transmission in industrial environments, it meets IEC 61076-2-101 standards.
Phoenix Contact SACCDSIM12FS8CONM16 Sensor Socket Specifications:
- Number of positions: 8
- Rated current at 40°C: 2A
- Rated voltage: 30V
- Rated surge voltage: 0.8 kV
- Connection method: Solder pins
- Ambient temperature (operation): -25°C to 85°C
- Degree of protection: IP67
- Material contact: CuZn, Au surface
- Sealing material: NBR
- Locking system: SPEEDCON
- Mounting: Rear mounting M16 x 1.5 with flat nut
- Dimensions: Length of solder pin 6mm, housing for M16 thread
- Standards: IEC 61076-2-101
- Durability: >100 insertion/withdrawal cycles
Buy the Phoenix Contact Series Industrial Sensor Socket: SACCDSIM12FS8CONM16
Order the sensor socket now from Phoenix Contact and enjoy quick installation, reliable IP67 protection, and durable solder connections for industrial automation. Designed for easy PCB mounting, this 8-position connector reduces cabling time with its SPEEDCON fast locking system. Suitable for signal, data, and power transmission under challenging environmental conditions, it meets IEC 61076-2-101 standards, handles temperatures from -25°C to 85°C, and withstands over 100 insertion cycles. Perfect for automation applications requiring secure and efficient connections.
Buy Phoenix Contact SACCDSIM12FS8CONM16 now and experience unmatched reliability and performance in industrial signal and power transmission.
