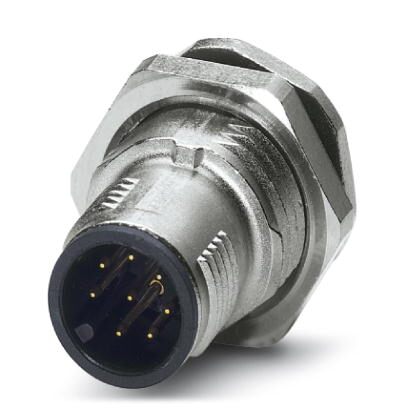

Phoenix Contact SACCDSIM12MS8CONM16SH M12 Sensor Plug
The Phoenix Contact SACC-DSI-M12MS-8CON-M16 SH is a robust M12 sensor plug designed for reliable data and power transmission in industrial environments. Its shielded construction minimizes interference, while the rear/screw mounting with M16 thread provides secure installation. The connector's one-piece design simplifies PCB assembly through wave soldering, and the SPEEDCON fast locking system reduces cabling time. Suitable for applications requiring high transmission reliability and resistance to harsh conditions, this connector is ideal for sensor and actuator connections in automated systems, industrial machinery, and process control.
Phoenix Contact SACCDSIM12MS8CONM16SH M12 Sensor Plug Specifications:
- Packing unit: 1 pc
- Minimum order quantity: 20 pc
- GTIN: 4046356534147
- Weight per Piece (excluding packing): 14.000 g
- Custom tariff number: 85366990
- Country of origin: Germany
- Length of the solder pin: 6 mm
- Ambient temperature (operation) - Plug / socket: -25 °C ... 85 °C
- Ambient temperature (operation) - without mechanical actuation: -40 °C ... 85 °C
- Degree of protection: IP67 (When plugged in)
- Degree of protection - When plugged in: IP65
- Note: Electrical and mechanical data assume correct locking and mounting. Seal with cap > IP54 if unlocked or contaminated.
- Rated current at 40°C: 2 A
- Rated voltage: 30 V
- Rated surge voltage: 0.8 kV
- Number of positions: 8
- Insulation resistance: ≥ 100 MΩ
- Coding: A - standard
- Standards/regulations: M12 connector IEC 61076-2-101
- Status display: No
- Overvoltage category: II
- Degree of pollution: 3
- Connection method: Solder pins
- Insertion/withdrawal cycles: > 100
- Torque: 3 Nm ... 4 Nm (Installation-side)
- Mounting type: Rear mounting M16 x 1.5 With flat nut
- Flammability rating according to UL 94: V0
- Contact material: CuZn
- Contact surface material: Au
- Contact carrier material: PA 6.6
- Material, knurls: Zinc die-cast, nickel-plated
- Sealing material: NBR
- Ambient temperature (operation) - cable, fixed installation: -40 °C ... 85 °C
- Ambient temperature (operation) - cable, flexible installation: -25 °C ... 85 °C
- REACh SVHC: Lead 7439-92-1
- China RoHS: Environmentally Friendly Use Period = 50 years
