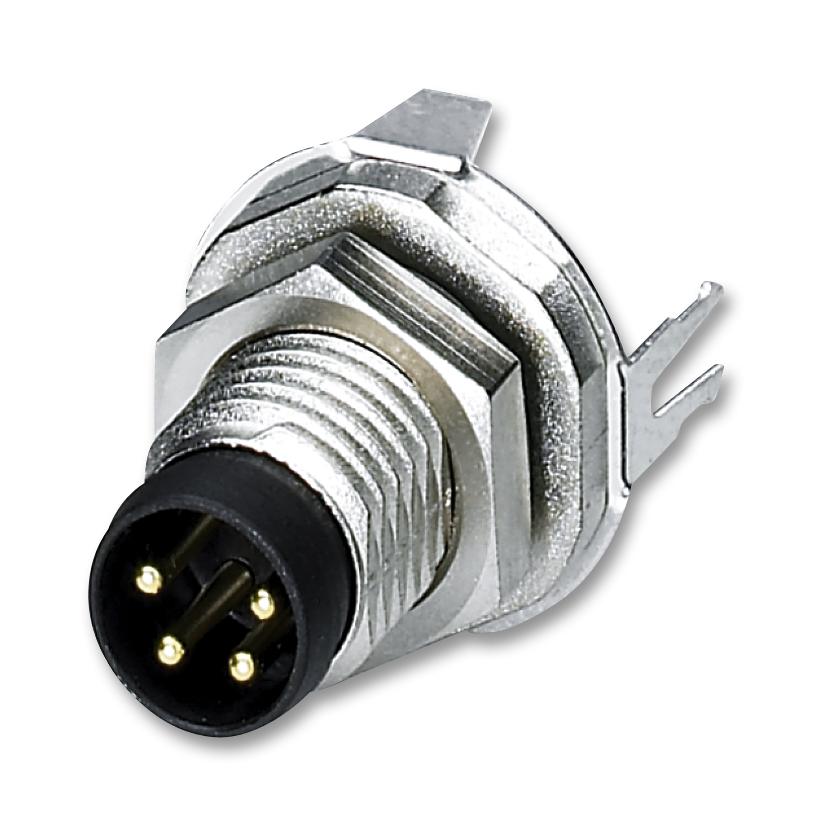

Phoenix Contact SACCDSIM8MS4CONL180SH M8 sensor connector
This flush-type connector is designed for sensor and actuator connections, featuring a 4-position M8 configuration with rear/screw mounting and straight solder connections. It fulfills the IEC 61076-2-104 standard, ensuring reliable signal transmission with optional shield connection and secure latching on PCBs. Made with copper alloy contacts with gold plating and zinc die-cast nickel-plated knurls, it withstands harsh environments with an IP67 degree of protection, operational from -25°C to 85°C. Ideal for industrial automation, it offers high durability and easy PCB assembly for reliable technical performance.
Phoenix Contact SACCDSIM8MS4CONL180SH M8 sensor connector Specifications:
- Ambient temperature (operation): -25°C to 85°C
- Degree of protection: IP67
- Rated current at 40°C: 4A
- Rated voltage: 50 VAC, 60 VDC
- Number of positions: 4
- Insulation resistance: 100 MQ
- Connection method: Solder pins
- Material, contact: Cu alloy with Au surface
- Material, contact carrier: Zinc die-cast, nickel-plated
- Sealing material: NBR
- Standard compliance: IEC 61076-2-104
- Flammability rating: UL 94 HB
- Environmental compliance: China RoHS
- Ambient temperature range: -25°C to 85°C
- Mounting: Rear mounting with M8 x 1 thread and flat nut
Buy the Phoenix Contact Series SACC-DSI-M 8MS-4CON-L180 SH: SACCDSIM8MS4CONL180SH
Enhance your automation setup with the reliable M8 sensor connector from Phoenix Contact. Featuring a 4-position solder connection, rear mounting, and IP67 protection, this connector ensures durability and stable signal transmission in harsh environments. Its gold-plated copper contacts and zinc die-cast housing provide long-lasting performance. Easy to install with standard M8 threads, it is ideal for industrial sensor and actuator applications. Buy online now to secure trusted connectivity for your machinery and automation systems.
Order your Phoenix Contact Series SACC-DSI-M 8MS-4CON-L180 SH connector today and ensure reliable, high-quality signals for industrial automation projects.
Frequently Asked Questions
Where can I buy Phoenix Contact SACCDSIM8MS4CONL180SH?
You can click on the BUY or RFQ button to purchase SACCDSIM8MS4CONL180SH from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part SACCDSIM8MS4CONL180SH?
You can download the SACCDSIM8MS4CONL180SH datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of SACCDSIM8MS4CONL180SH?
Phoenix Contact
