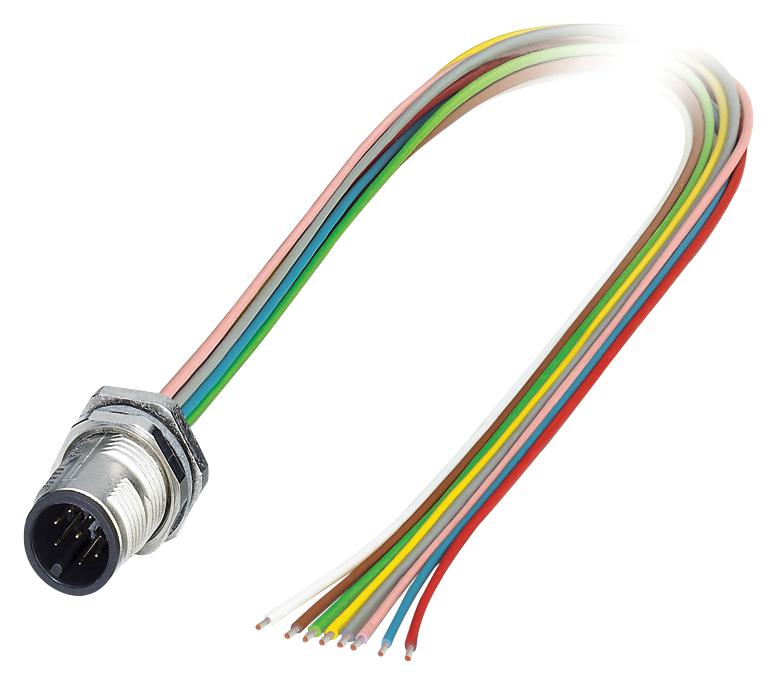

Phoenix Contact SACCDSIMS8CONM1205SCO Industrial M12 Sensor Connector
The sensor/actuator flush-type M12 connector features an 8-position speedcon locking system, IP67 protection, and a 0.5m TPE litz wire. Designed for high transmission safety, it includes shield connection options and a sealed design for leak-proof operation. Suitable for industrial environments, this connector supports rated currents of 2A, a voltage of 30V, and withstands operating temperatures from -25°C to 85°C. Mounting is rear with an M12 thread, ensuring quick assembly with a standard locking torque of 3-4 Nm, making it ideal for signal and power transmission in automation systems.
Phoenix Contact SACCDSIMS8CONM1205SCO Industrial M12 Sensor Connector Specifications:
- Number of positions: 8
- Rated current: 2A at 40°C
- Rated voltage: 30V
- Rated surge voltage: 0.8 KV
- Insulation resistance: > 100 MΩ
- Cable length: 0.5m
- Cable type: TPE litz wire, 14x 0.15mm conductor structure
- Conductor cross section: 0.25 mm²
- Conductor resistance: < 80 mΩ/m
- Operating temperature (plug/socket): -25°C to 85°C
- Housing protection class: IP67
- Mounting: Rear, M12 x 1 thread, with flat nut
- Contact material: Copper zinc (CuZn), gold-plated contacts
- Sealing material: NBR
- Standards: IEC 61076-2-101, UL 94 V-0 flammability
- Overvoltage category: 3
- Pollution degree: 3
- Insertion/withdrawal cycles: > 100
- Max torque: 3-4 Nm
Buy the Phoenix Contact Series M12 Sensor Connectors: SACCDSIMS8CONM1205SCO
Order the Phoenix Contact SACCDSIMS8CONM1205SCO online today for reliable industrial signal and power connections. Pre-assembled with premium TPE litz wires, it features IP67 protection and quick-lock SPEEDCON system, ensuring fast, secure installation. Ideal for automation, the connector supports rated current of 2A, a voltage of 30V, and withstands harsh environments with temperature ranges from -25°C to 85°C. Its rugged design guarantees long-lasting performance in industrial applications, streamlining your setup and maintenance processes.
Get Phoenix Contact SACCDSIMS8CONM1205SCO today—built for precision, sealing, and durability in industrial automation environments.
