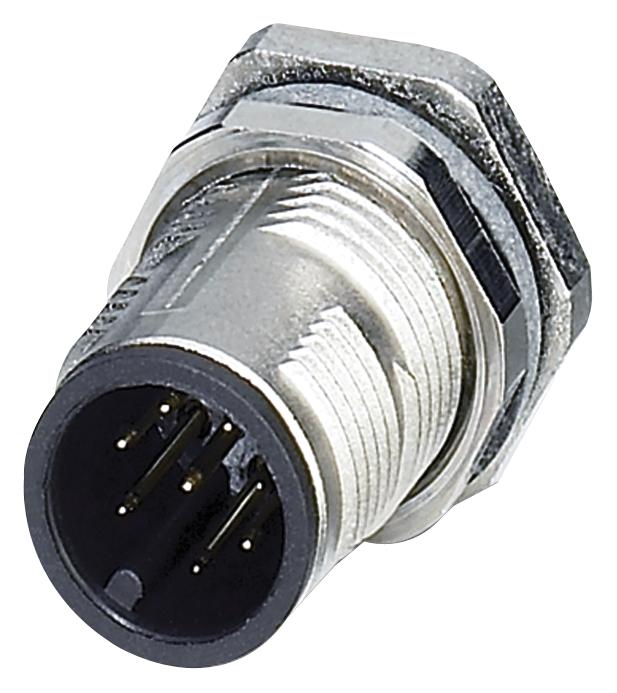

Phoenix Contact SACCDSIMS8CONM12SCO Sensor Connector
The SACC-DSI-MS-8CON-M12 SCO is a robust flush-type sensor/actuator connector with 8 positions, designed for reliable PCB assembly and signal, data, and power transmission. Featuring a secure SPEEDCON locking system, rear mounting, and solder connection, it ensures quick, secure connections with IP67 protection. Suitable for industrial environments, it withstands temperature ranges from -40°C to 85°C, supports a rated current of 2A at 30V, and complies with IEC 61076-2-101 standards. Its durable contact materials and quick installation make it ideal for automation and control systems.
Phoenix Contact SACCDSIMS8CONM12SCO Sensor Connector Specifications:
- Number of positions: 8
- Rated current at 40°C: 2A
- Rated voltage: 30V
- Rated surge voltage: 0.8 kV
- Insulation resistance: > 100 MQ
- Connection method: Solder pins
- Degree of protection: IP67
- Ambient temperature (operation): -25°C to 85°C (plug/socket), -40°C to 85°C (cable, fixed installation)
- Materials: CuZn contact, Au surface, PA 66 contact carrier, zinc die-cast knurls, NBR sealing
- Torque: 3 Nm to 4 Nm
- Mounting: Rear mounting with flat nut, M12 x 1
- Standards: IEC 61076-2-101
- Flammability class: UL 94 V-0
- Impact resistance: >100 insertion cycles
Buy the Buy Phoenix Contact Sensor Connector Part Number SACCDSIMS8CONM12SCO Online
Purchase the Phoenix Contact Sensor Connector SACCDSIMS8CONM12SCO online now to benefit from its durable design, IP67 protection, quick locking system, and reliable signal transmission capabilities. Perfect for industrial environments, this 8-position connector supports assembly efficiency with solder pin connections, withstands harsh temperature conditions from -40°C to 85°C, and meets IEC standards for safety and quality. Secure your automation systems today with a proven, high-quality connector that offers ease of installation and long-term durability.
Order your Phoenix Contact Series SACCDSIMS8CONM12SCO today and ensure reliable, quick, and robust connections for industrial automation projects.
Frequently Asked Questions
Where can I buy Phoenix Contact SACCDSIMS8CONM12SCO?
You can click on the BUY or RFQ button to purchase SACCDSIMS8CONM12SCO from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part SACCDSIMS8CONM12SCO?
You can download the SACCDSIMS8CONM12SCO datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of SACCDSIMS8CONM12SCO?
Phoenix Contact
