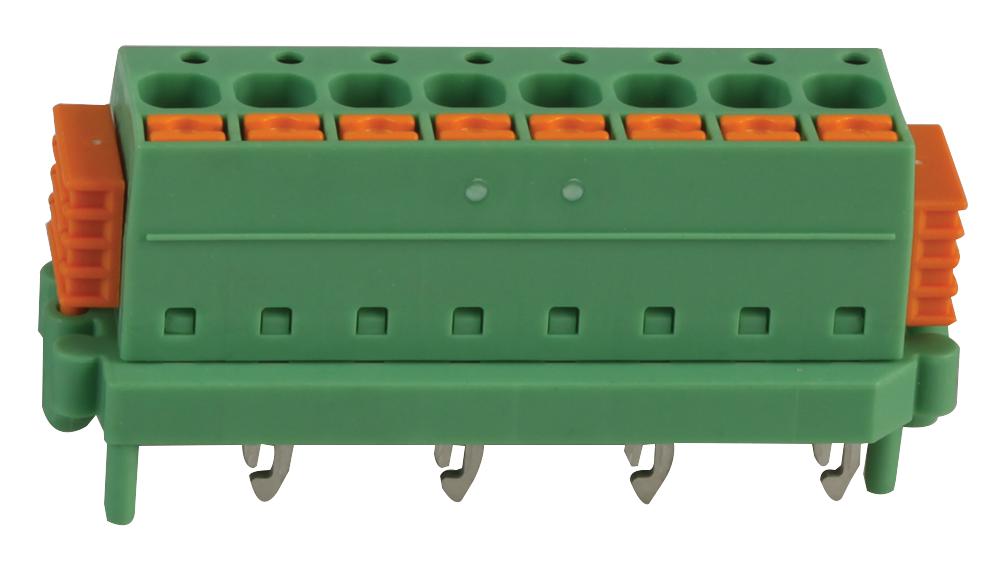

Phoenix Contact SDC258PV50ZB push-in connector
This compact direct connector features an 8-position push-in spring connection with a 5 mm pitch, enabling vibration-resistant, easy hand-insertion on PCBs. It supports a nominal current of 12 A and rated voltage of 320 V, making it suitable for industrial automation and electrical wiring applications. The connector employs SKEDD direct plug-in technology for flexible positioning, reducing component costs and saving assembly time. Its tin contact surface ensures reliable electrical connectivity, adhering to EN-VDE standards, and is compatible with conductor cross sections from 0.2 mm² to 2.5 mm², including AWG 24-12.
Phoenix Contact SDC258PV50ZB push-in connector Specifications:
- Number of positions: 8
- Pitch: 5 mm
- Rated current: 12 A
- Rated voltage: 320 V (III/2), 200 V (III/3)
- Connection method: Push-in spring connection
- Contact surface: Tin
- Dimensions: Length 15.3 mm, Height 21.2 mm, Width 48.18 mm
- Suitable for conductor cross section: 0.2 mm² to 2.5 mm² (AWG 24-12)
- Stripping length: 10 mm
- Compliance: EN-VDE standards, VDE approval, cULus Recognized
- Environmental: China RoHS compliant, unlimited use period
Buy the Phoenix Contact SDC 2,5/ 8-PV-5,0-ZB – Reliable Connectors for Industrial Applications
Discover the Phoenix Contact SDC 2,5/ 8-PV-5,0-ZB direct connector now available for online purchase. Designed for reliable, vibration-resistant electrical connections, this 8-position green connector supports up to 12 A and 320 V. Its push-in spring connection ensures quick, tool-free installation, saving time and reducing costs. Ideal for automation systems, control cabinets, and industrial wiring, it features SKEDD technology for flexible PCB placement. Order today to benefit from top quality, easy handling, and compliance with international standards.
Order your Phoenix Contact Series SDC 2,5/ 8-PV-5,0-ZB connector today and enhance your industrial wiring with a vibration-resistant, quick-insertion solution.
Frequently Asked Questions
Where can I buy Phoenix Contact SDC258PV50ZB?
You can click on the BUY or RFQ button to purchase SDC258PV50ZB from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part SDC258PV50ZB?
You can download the SDC258PV50ZB datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of SDC258PV50ZB?
Phoenix Contact
