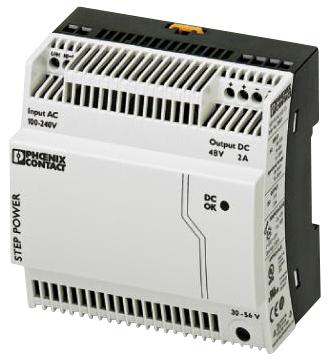

Phoenix Contact STEPPS1AC48DC2 Power Supply
The power supply unit is designed for industrial and building automation, providing a stable 48 V DC output at 2 A from a 1-phase input ranging from 85 to 264 V AC. Its compact size (90 mm x 90 mm x 61 mm) allows flexible mounting on DIN rails or surfaces. It features high efficiency (> 90%), low idling losses, and reliable operation with a MTBF exceeding 500,000 hours. The device supports parallel and series connections, offers surge protection, and meets UL, IEC, and other international standards for electrical safety, EMC, and vibration resilience.
Phoenix Contact STEPPS1AC48DC2 Power Supply Specifications:
- Dimensions: Width 90 mm, Height 90 mm, Depth 61 mm
- Input Voltage Range: 85 VAC ... 264 VAC, 100 VAC ... 240 VAC
- Input Fuse: 4 A (slow-blow, internal)
- Nominal Output Voltage: 48 V DC, Range 41% to 56 V DC
- Output Current: 2 A, 2.2 A (at -25°C ... 40°C), 3.5 A (peak)
- Efficiency: Greater than 90% at 230 V AC
- Power Dissipation: Max 9.6 W at nominal load
- Protection Class: II (in closed control cabinet)
- Mounting: DIN rail NS 35, EN 60715; horizontal position
- Vibration Resistance: <15 Hz, +2.5 mm; 15-150 Hz, 2.3 g for 90 min
- Surge Protection: Varistor included
- Standards: UL, cUL, EN 61000-6-2, IEC 60950-1, EN 61558-2-16
Buy the Phoenix Contact Series Power Supplies: STEP-PS/ 1AC/48DC/2
Purchase the Phoenix Contact POWER SUPPLY UNIT for industrial automation and building projects. Its compact design, high efficiency (> 90%), and robust protection features ensure dependable operation. Easy to install via DIN rail or surface mounting, it supports parallel and series configurations for redundancy and capacity. Certified for UL, cUL, EMC, and safety standards, this power supply offers excellent performance, low power losses, and long MTBF, making it an ideal choice for reliable and energy-efficient power distribution in demanding environments.
Buy Phoenix Contact STEP-PS/ 1AC/48DC/2 power supply now and experience unmatched reliability and performance in automation applications.
