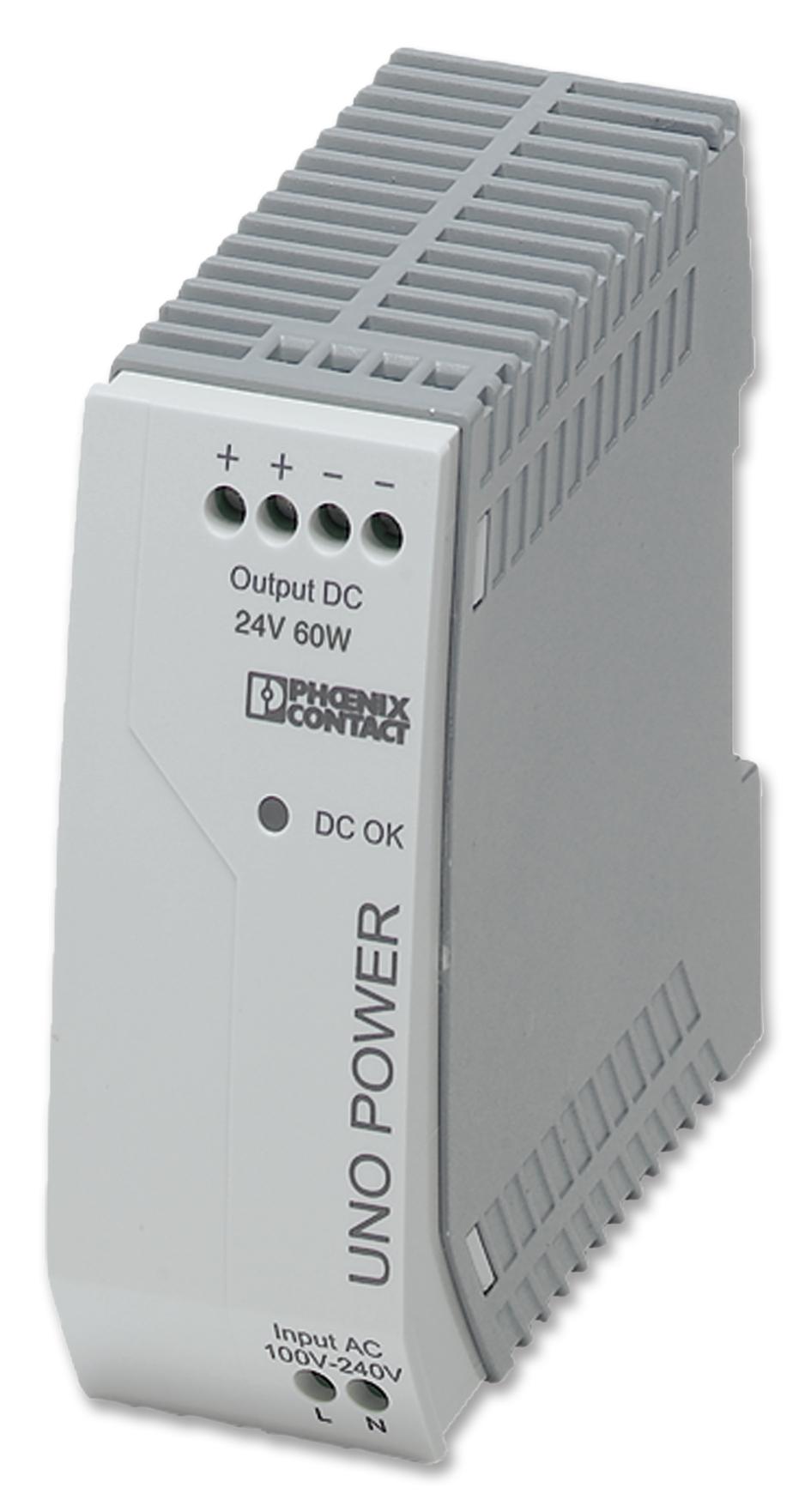

Phoenix Contact UNOPS1AC24DC60W Industrial Power Supply
The UNO-PS/1AC/24DC/60W is a compact, primary-switched power supply designed for DIN rail mounting, providing 24V DC at 2.5A with over 90% efficiency. It features high power density, low idle losses, and universal input voltage ranging from 85V to 264V AC. Suitable for control cabinets, it offers transient surge protection, UL recognition, and a rugged design with dimensions of 35mm width, 90mm height, and 84mm depth. Its high reliability and energy-efficient operation make it ideal for industrial automation applications.
Phoenix Contact UNOPS1AC24DC60W Industrial Power Supply Specifications:
- Dimensions: Width 35mm, Height 90mm, Depth 84mm
- Input Voltage Range: 85V AC to 264V AC
- Input Frequency: 45Hz to 65Hz
- Output Voltage: 24V DC ± 41%
- Output Current: 2.5A at -25°C to 55°C, derates above 55°C
- Efficiency: > 90% (at 230V AC, nominal load)
- Power Dissipation No-Load: <0.3W
- Power Loss at Nominal Load: <7W
- Protection Class: II, UL Listed, UL 508
- Ambient Conditions: Operation -25°C to 70°C, Storage/Transport 40°C to 85°C
- Cable Connection: Screw terminal, AWG 24-14, stripping length 8mm
- Surge Protection: Transient surge protection with varistor
- Certifications: UL, cUL, CB Scheme, EN standards
- Mounting: Horizontal DIN rail (NS 35, EN 60715)
- MTBF: 785,787 hours (IEC 61709, SN 29500)
Buy the Phoenix Contact Series UNO Power Supply: UNOPS1AC24DC60W
Experience reliable and energy-efficient power with our industrial-grade 24V DC power supply. Easy to install on DIN rails, it offers over 90% efficiency, low power loss, and comprehensive surge protection. Perfect for control cabinets, automation systems, and industrial applications, ensuring your systems run smoothly with minimal maintenance. Order now online and benefit from fast delivery, excellent quality, and support from trusted suppliers. Secure your project’s power needs today with this high-performance industrial power supply.
Order your Phoenix Contact Series UNO Power Supply UNOPS1AC24DC60W today and ensure reliable energy supply for your industrial automation projects.
Frequently Asked Questions
Where can I buy Phoenix Contact UNOPS1AC24DC60W?
You can click on the BUY or RFQ button to purchase UNOPS1AC24DC60W from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part UNOPS1AC24DC60W?
You can download the UNOPS1AC24DC60W datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of UNOPS1AC24DC60W?
Phoenix Contact
