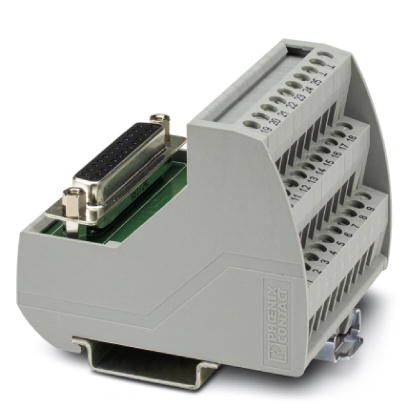

Phoenix Contact VIP3SCD25SUBF Interface Module
The PHOENIX CONTACT VIP-3/SC/D25SUB/F interface module is a versatile solution for connecting field-level devices to controller systems. It is designed for mounting on NS 35 rails and offers a 25-position D-Subminiature pin strip for reliable connections. This module supports various ABB S800 I/O cards, including DI810, DI811, DI814, DI818, DI830, DI831, DI840, DI885, DO810, DO814, DO818, DO840, DP820, AI810, AI815, AI820, AI830, AI835, AI845, AO810, AO815, AO820, and AO845. It is compliant with IEC 60664, DIN EN 50178, and IEC 62103 standards, ensuring reliable performance in industrial environments.
Phoenix Contact VIP3SCD25SUBF Interface Module Specifications:
- packing_unit: 1 STK
- gtin: N/A
- width: 57.4 mm
- height: 69 mm
- depth: 62 mm
- ambient_temperature_operation: -20 °C ... 50 °C
- ambient_temperature_storage_transport: -20 °C ... 70 °C
- max_perm_operating_voltage: 125 V AC/DC
- max_perm_current_per_branch: 2 A
- number_of_positions: 25
- status_display: No
- mounting_position: any
- standards_regulations: IEC 60664, DIN EN 50178, IEC 62103
- rated_surge_voltage: 1.2 kV
- degree_of_pollution: 2
- overvoltage_category: II
- connection_name_field_level: Field level
- connection_in_acc_with_standard: IEC / EN
- connection_method_field_level: Screw connection
- stripping_length: 8 mm
- screw_thread_field_level: M 3
- conductor_cross_section_solid_field_level: 0.2 mm² ... 4 mm²
- conductor_cross_section_flexible_field_level: 0.2 mm² ... 2.5 mm²
- conductor_cross_section_awg_field_level: 24 ... 12
- connection_name_controller_level: Controller level
- connection_method_controller_level: D-SUB socket strip
- number_of_connections: 1
- supported_controller: ABB S800 I/O
- suitable_io_card: DI810, DI811, DI814, DI818, DI830, DI831, DI840, DI885, DO810, DO814, DO818, DO840, DP820, AI810, AI815, AI820, AI830, AI835, AI845, AO810, AO815, AO820, AO845
- ecl_4_0: 27250313
- ecl_4_1: 27250313
- ecl_5_0: 27250313
- ecl_5_1: 27250313
- ecl_6_0: 27242608
- ecl_7_0: 27141152
- ecl_8_0: 27141152
- etim_2_0: EC001434
- etim_3_0: EC001604
- etim_4_0: EC001604
- etim_5_0: EC002780
- unspsc_6_01: 30211824
- unspsc_7_0901: 39121421
- unspsc_11: 39121421
- unspsc_12_01: 39121421
- unspsc_13_2: 39121421
