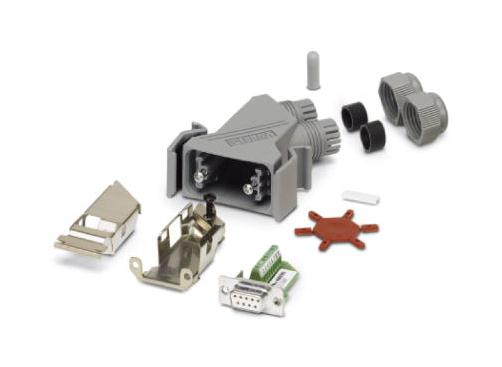

Phoenix Contact VS09IBSBU Shielded D-SUB Connector
This D-SUB connector is designed for INTERBUS systems, featuring a shell size 1, socket configuration, screw connection, and shielding. It is protected to IP67, ensuring reliable performance in harsh industrial environments. The connector has a straight connection orientation, supports cable diameters from 5mm to 9mm with a maximum conductor cross-section of 0.5 mm², and operates within -20°C to 70°C. Constructed with gold-over-nickel contact surfaces, copper alloy contacts, and durable PA housing, it adheres to safety standards and environmental regulations suitable for industrial automation and control applications.
Phoenix Contact VS09IBSBU Shielded D-SUB Connector Specifications:
- Connection method: Screw connection
- Minimum external conductor diameter: 5mm
- Maximum external conductor diameter: 9mm
- Conductor cross section: 0.14 mm² to 0.5 mm²
- Housing material: PA (Polyamide)
- Contact surface material: Gold over nickel
- Contact material: Copper alloy
- Number of positions: 9
- Rated voltage: According to IEC standards (typically 250 V AC)
- Rated current: Not specified but suitable for typical signal and control applications
- Overvoltage category: Category 3
- Degree of pollution: 2
- Ambient temperature: -20°C to 70°C
- Cable outlet: Angled
- Weight: 90.6 g
- Standards: UL V-0 flammability rating, EAC approval
- Environmental compliance: REACH SVHC Lead 7439-92-1, China RoHS
- Protection rating: IP67
Buy the Phoenix Contact VS09IBSBU – Reliable Shielded D-SUB for Industrial Applications
Enhance your industrial control systems with the shielded D-SUB connector. Designed for INTERBUS and other communication protocols, it provides robust IP67 protection, reliable screw connection, and excellent electrical contact with gold-over-nickel surfaces. Perfect for harsh environments, its compact design features an angled cable outlet, suitable conductors from 5mm to 9mm diameter, and a temperature range of -20°C to 70°C. Easily order online for fast delivery and dependable performance in demanding automation applications.
Order your Phoenix Contact VS09IBSBU series connector today and ensure secure, IP67-rated connection solutions for challenging industrial environments.
