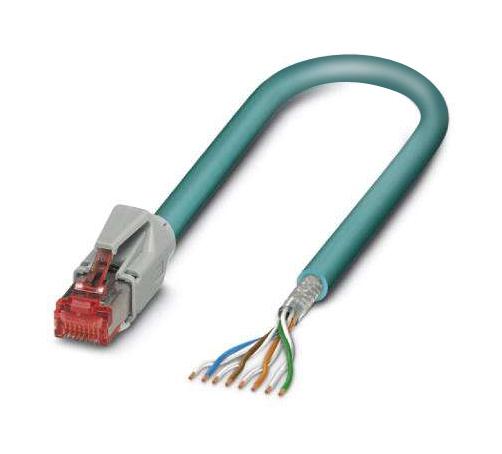

Phoenix Contact VSIP20OE94FLI20 Industrial Ethernet Cable
This assembled CAT6 Ethernet cable features shielding and water-blue RAL 5021 outer sheath, suitable for industrial network installations. With four twisted pairs, including foil and braided shielding, it provides high-performance data transmission at 10 Gbps. The cable includes AWG 26 stranded conductors with a core diameter of 1.04 mm, and features excellent impedance and crosstalk attenuation for reliable connectivity. Designed to operate over -25°C to 60°C in fixed installations, this UL and IEC rated cable supports demanding industrial and data center environments with durability and precision.
Phoenix Contact VSIP20OE94FLI20 Industrial Ethernet Cable Specifications:
- Cable type: Shielded CAT6 Ethernet
- Signal category: 10 Gbps
- Conductor cross section: 4x 2x 0.14 mm AWG 26
- Shielding: Aluminum-lined foil and tinned copper braided shield
- Outer sheath: Water blue RAL 5021, thickness 0.65mm
- Outer diameter: 6.4 mm +0.2 mm
- Minimum bending radius: 4xD fixed, 8xD flexible
- Temperature range: -25°C to 60°C fixed, -10°C to 50°C flexible
- Weight: 42 kg/km, Power rating: 30 V, 80°C UL style 20963
- Impedance: Wave impedance approx. 100 Ω, Resistance: <290 Ω/km
- Next attenuation: Up to 75.3 dB at 1 MHz, excellent crosstalk resistance
- Test voltage: 700 V, Flame resistance: IEC 60332-1-2, Halogen-free, Oil resistant
- Environmental conditions: -40°C to 80°C operation, flexible and fixed installation
Buy the Phoenix Contact VS-IP20-OE-94F-LI/2,0 – Reliable Industrial Ethernet Cable for Network Applications
Purchase the Phoenix Contact Ethernet cable online today and experience seamless, high-speed data transfer in demanding industrial environments. Designed with high shielding, durable outer sheath, and compliant with UL and IEC standards, this 2-meter shielded CAT6 cable guarantees reliable performance and long-term durability. Ideal for industrial automation, data centers, and network installations where high data rates are essential. Order now to improve your network infrastructure with a trusted, high-quality cable that ensures robust, interference-free connectivity.
Order your Phoenix Contact SeriesVS-IP20-OE-94F-LI/2,0 Ethernet cable today and ensure high-speed, durable connectivity for industrial networks.
