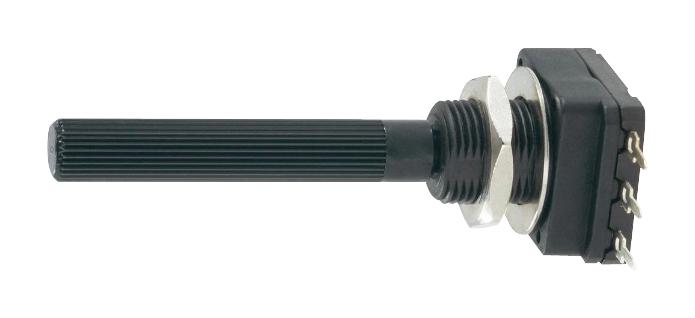

Piher - Amphenol PC16SH10IP06102A2020TA industrial potentiometer
A precision potentiometer with a rugged carbon resistive element designed for industrial control applications. Featuring IP54 protection, polyester substrate, and modular gang type configurations for versatile use. Options include metal support, stereo matching, switches, and bushless or shaftless models, suitable for demanding environments. Electrical specifications include an operational rotation of 280° with a torque range of 0.7 to 2.1 in-oz, maximum voltage of 250 VDC, and residual resistance below 0.5% Rn. The device operates in temperatures from -25°C to +70°C with features such as thermal cycling and damp heat resistance.
Piher - Amphenol PC16SH10IP06102A2020TA industrial potentiometer Specifications:
- Mechanical rotation angle: 300° +5°
- Electrical rotation angle: 280° +20°
- Torques: 0.7 to 2.1 in-oz (0.5 to 1.5 Nom.)
- Max. Voltage: 250 VDC (linear), 125 VDC (non-linear)
- Residual resistance: < 0.5% Rn
- Operating temperature: -25°C to +70°C
- Durability: Electrical life of 1000 hours @ 50°C, 0.2 W
- Mechanical life: 25,000 cycles (10-15 CPM)
- Temperature coefficient: +300 ppm/°C
- Vibration resistance: 2 hours at 10-55 Hz
- Connector types: PCB terminal, solder lug
- Bushing: M10 x 0.75, optionally with metallic support
- Housing: Polyester substrate with IP54 protection
- Optional features: Stereo matching, switch, nut and washer, bushless and shaftless versions
- Compliance: UL 94-VO self extinguishable material
Buy the Piher Series 16 mm Carbon Potentiometer: PC16SH10IP06102A2020TA
Order the Piher PC16SH10IP06102A2020TA online now and experience exceptional reliability in industrial control systems. Designed with a rugged carbon resistive element and IP54 protection, this potentiometer offers precise adjustments with a 280° operational rotation. Its modular design supports various mounting options, including bushless and shaftless models, making it suitable for demanding environments. Whether for calibration or adjustment tasks, this device ensures durability, accuracy, and excellent electrical performance, enabling seamless integration into your automation and control applications.
Get Piher PC16SH10IP06102A2020TA today—built for precision and long-lasting durability.
Frequently Asked Questions
Where can I buy Piher - Amphenol PC16SH10IP06102A2020TA?
You can click on the BUY or RFQ button to purchase PC16SH10IP06102A2020TA from an authorized Piher - Amphenol distributor.
How do I troubleshoot issues or seek technical support for part PC16SH10IP06102A2020TA?
You can download the PC16SH10IP06102A2020TA datasheet or visit the Piher - Amphenol website for support.
Who is the manufacturer of PC16SH10IP06102A2020TA?
Piher - Amphenol
