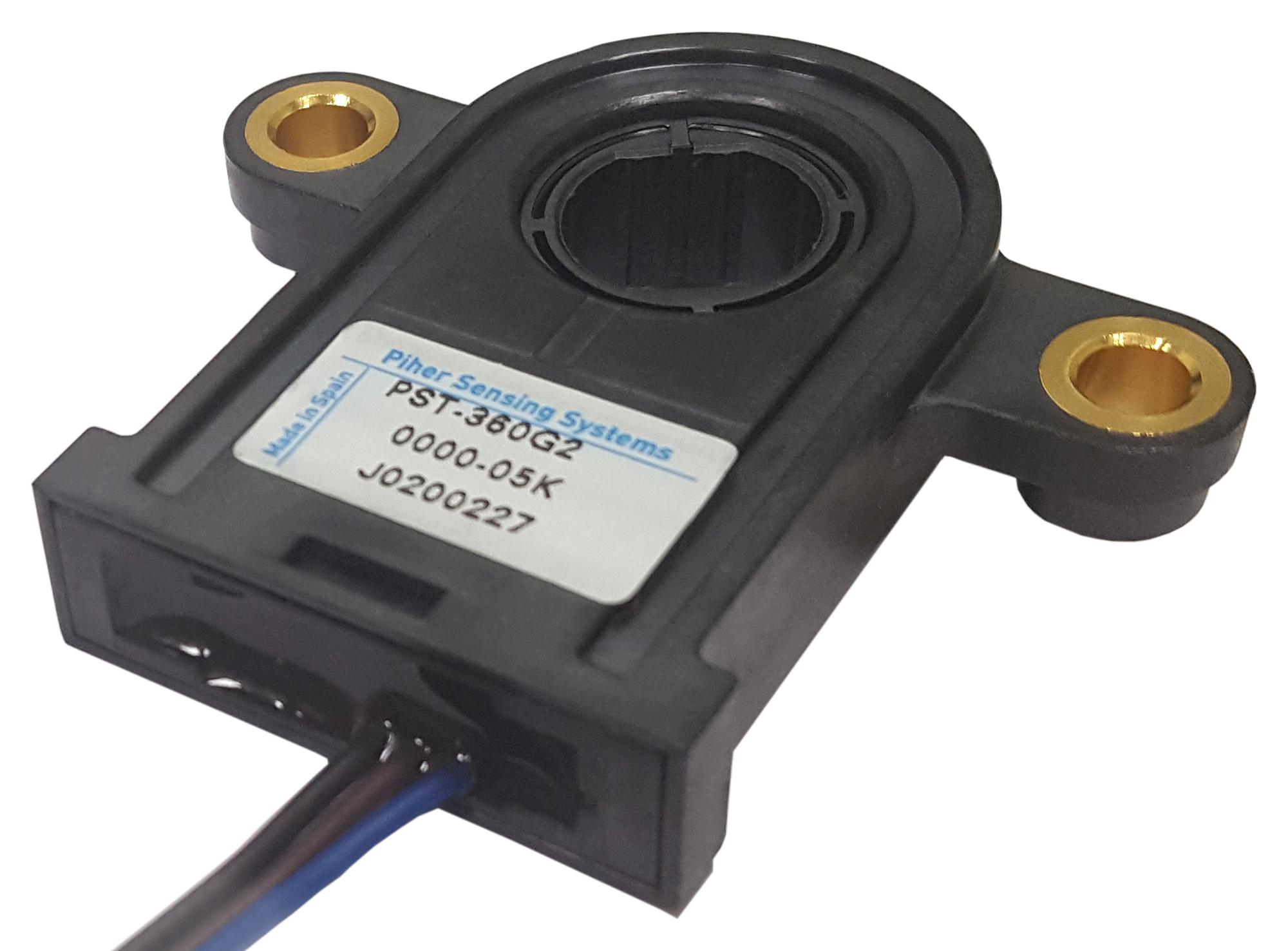

Piher - Amphenol PST360G21SC0000ERA36005K Rotary Position Sensor
The PST-360 magnetic rotary hollow-shaft position sensor is a contactless, high-precision sensor offering absolute position feedback of up to 360 degrees. Its innovative design allows for non-contact operation without gears or mechanical parts, providing durability with up to 50 million cycles. Suitable for harsh environments, it features programmable angular range, ratiometric analog or PWM outputs, and optional serial or CAN protocols. It is ideal for industrial, automotive, off-highway, marine, and robotics applications requiring reliable, long-lasting rotary position sensing with high resolution and custom configuration options.
Piher - Amphenol PST360G21SC0000ERA36005K Rotary Position Sensor Specifications:
- Hollow shaft diameter 14mm or 17mm
- Rotational life up to 50,000,000 cycles
- Operating temperature -40°C to +125°C
- Angular range programmable from 15° to 360°
- Outputs: Analog (Ratiometric), PWM, Serial (SPI), CAN (optional)
- Angular resolution up to 14 bits (serial), up to 12 bits (analog & PWM)
- Supply voltage up to 25V, typical current 8.5mA for standard, 17mA for redundant
- Seal: Sealed construction for dust, moisture, vibration, and extreme temperatures
- Features: Over voltage, reverse voltage protection, self-diagnostic, factory programmable outputs
- Application: Long life, non-contact rotary sensing for industrial, automotive, and off-highway environments
Buy the Buy Piher PST-360 Magnetic Rotary Hollow Shaft Position Sensor Part Number PST360G21SC0000ERA36005K Online
Purchase the Piher PST-360 rotary position sensor online for reliable, contactless absolute feedback up to 360 degrees. Its robust sealed design withstands harsh environments, ideal for industrial, automotive, and off-highway applications. Featuring high resolution, programmable angular range, and multiple output options including analog, PWM, and serial protocols, this sensor offers long-lasting performance with up to 50 million cycles. Easy to install with simple mounting, it ensures precise sensing in demanding applications, providing outstanding durability and flexibility for your rotary measurement needs.
Get Piher PST-360 today—designed for high accuracy, durability, and versatile programmable outputs in demanding environments.
Frequently Asked Questions
Where can I buy Piher - Amphenol PST360G21SC0000ERA36005K?
You can click on the BUY or RFQ button to purchase PST360G21SC0000ERA36005K from an authorized Piher - Amphenol distributor.
How do I troubleshoot issues or seek technical support for part PST360G21SC0000ERA36005K?
You can download the PST360G21SC0000ERA36005K datasheet or visit the Piher - Amphenol website for support.
Who is the manufacturer of PST360G21SC0000ERA36005K?
Piher - Amphenol
