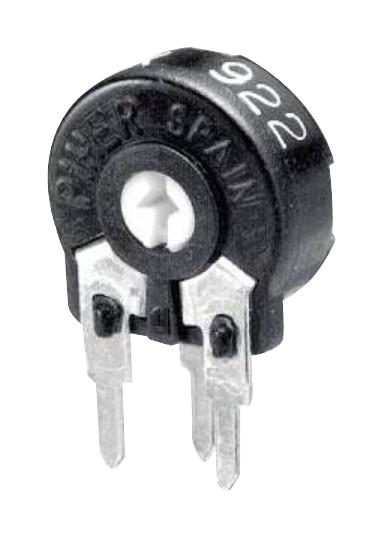

Piher - Amphenol PT10LH01223A2020S Carbon Potentiometer
The PT10LH01223A2020S is a 10 mm carbon potentiometer offering precise control in electronic devices, with a rotor type L (arrow shape), and a mounting method suitable for various applications. It features a 10K resistance with 20% tolerance, a mechanical rotation angle of 235° ±5°, and an electrical rotation angle of 220° +20°. Designed for reliability, it supports up to 100,000 cycles, with a torque range of 0.4 to 2 N·m. Its dust-proof enclosure, self-extinguishable UL94V-0 plastic housing, and optional non-flammable materials make it ideal for automotive, appliance, and industrial control systems.
Piher - Amphenol PT10LH01223A2020S Carbon Potentiometer Specifications:
- Mechanical rotation angle: 235° ±5°
- Electrical rotation angle: 220° +20°
- Resistance: 10KΩ, tolerance ±20%
- Max voltage: 200 VDC (lin), 100 VDC (no lin)
- Power Rating: 0.15 W (lin), 0.07 W (no lin)
- Torque: 0.4 to 2 N·m
- Mechanical life: up to 100,000 cycles
- Housing material: Dust-proof plastic, UL94V-0
- Temperature range: -25°C to +70°C
- Rotor type: L (arrow shape)
- Mounting: Suitable for various configurations, optional assembled shafts or knobs
- Vibration resistance: 2h at 10-55 Hz in x, y, z axes
- Environmental resistance: Damp heat 500h at 40°C, 95% HR
Buy the Buy Piher PT10LH01223A2020S Part Number 01223A2020S Online
Enhance your electronic control systems with the Piher PT10LH01223A2020S carbon potentiometer. Featuring a 10K resistance, 235° rotation, 100,000-cycle lifespan, and dust-proof housing, this durable component is ideal for automotive, appliances, and industrial applications. Its flexible mounting options and UL94V-0 plastic housing ensure safety and performance. Easy to integrate into your designs, the PT10LH01223A2020S offers precise control, long life, and reliable operation, making it a smart choice for engineers and technicians seeking quality control components online.
Order your Piher Series PT10LH01223A2020S today and enjoy reliable control solutions with high durability and versatile mounting options for your projects.
Frequently Asked Questions
Where can I buy Piher - Amphenol PT10LH01223A2020S?
You can click on the BUY or RFQ button to purchase PT10LH01223A2020S from an authorized Piher - Amphenol distributor.
How do I troubleshoot issues or seek technical support for part PT10LH01223A2020S?
You can download the PT10LH01223A2020S datasheet or visit the Piher - Amphenol website for support.
Who is the manufacturer of PT10LH01223A2020S?
Piher - Amphenol
