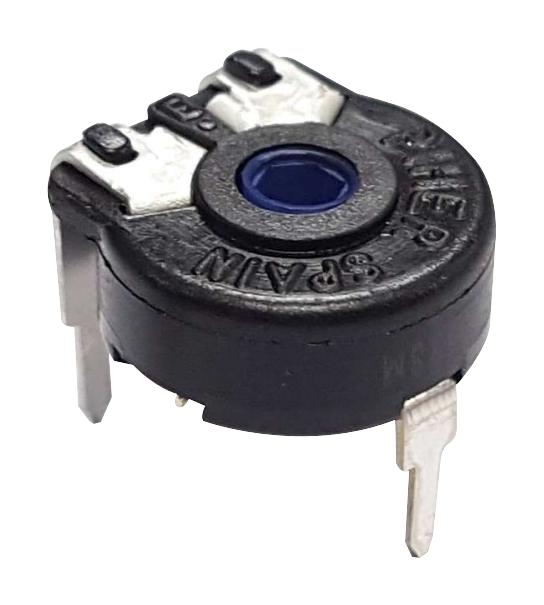

Piher - Amphenol PT10MV10103A2020ES Carbon Potentiometer
The PT10 carbon potentiometer offers adjustable resistance control with a 10 mm diameter, suitable for frequent adjustment applications such as testing, measurement, and consumer electronics. Its shaftless design allows for versatile engagement mechanisms, including custom shafts or motor control interfaces. Featuring dust-proof enclosure and polyester substrate, it provides up to 100,000 cycles life, a mechanical rotation angle of 235°±5°, and an electrical range of Rn from 100Ω to 1MΩ, with a linear taper and low noise resistance. Ideal for appliances, robotics, and medical equipment control panels, it combines durability and precise control in a compact form factor.
Piher - Amphenol PT10MV10103A2020ES Carbon Potentiometer Specifications:
- Mechanical rotation angle: 235° ±5°
- Electrical resistance range: 100Ω to 1MΩ
- Tolerance: ±20%
- Max voltage: 200 VDC (linear), 100 VDC (non-linear)
- Power Rating: 0.15 W (linear), 0.07 W (non-linear)
- Resistance: Rn from 100Ω to 5MΩ
- Residual resistance: <3% Rn (5Ω min.)
- Temperature Range: -25°C to +70°C (up to 85°C depending on application)
- Life Cycle: Up to 100,000 cycles
- Mechanical torque: 0.4 to 2 Nm
- Dust-proof enclosure with polyester substrate
- Features: Cut track option, special tapers, detents, low torque versions, and optional switch features
- Tapers: Linear, Log, Alog
- Available in various mounting and shaft configurations
Buy the Buy Piher PT10 Part Number PT10MV10103A2020ES Online
Purchase the Piher PT10 carbon potentiometer online now for reliable and precise control in electronic and automation applications. Designed with a dust-proof enclosure, it offers up to 100,000 mechanical cycles and a 235° adjustable rotation angle, making it ideal for appliances, robotics, and medical controls. Its resistance ranges from 100Ω to 1MΩ with different tapers, and its compact size allows easy integration into various systems. Ensure your projects benefit from durable, high-performance potentiometers available directly from trusted distributors.
Get Piher PT10 today—built for precise resistance control and long-lasting durability in automation and control systems.
Frequently Asked Questions
Where can I buy Piher - Amphenol PT10MV10103A2020ES?
You can click on the BUY or RFQ button to purchase PT10MV10103A2020ES from an authorized Piher - Amphenol distributor.
How do I troubleshoot issues or seek technical support for part PT10MV10103A2020ES?
You can download the PT10MV10103A2020ES datasheet or visit the Piher - Amphenol website for support.
Who is the manufacturer of PT10MV10103A2020ES?
Piher - Amphenol
