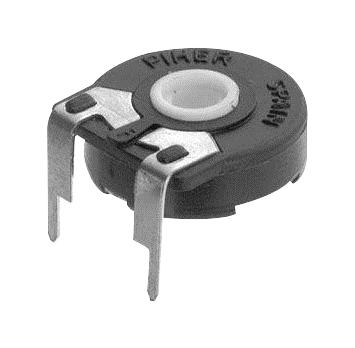

Piher - Amphenol PT15RV02472A2020ES 15mm Carbon Potentiometer
The PT-15mm Carbon Potentiometer integrates a durable carbon resistive element with an IP54-rated protection, polyester substrate, and customizable options like long-life models, low torque variants, cut track, special tapers, and mechanical detents. Designed for precise control in industrial and consumer applications, it features a 265° ± 5° mechanical rotation, a maximum voltage of 250 VDC, residual resistance under 0.5% Rn, and an operating temperature range of -25°C to +70°C. Ideal for controlling electrical signals in varied environments, it offers reliable performance and customization for specific needs.
Piher - Amphenol PT15RV02472A2020ES 15mm Carbon Potentiometer Specifications:
- Mechanical rotation angle: 265° ± 5°
- Electrical rotation angle: 240° ± 20°
- Max voltage: 250 VDC
- Residual resistance: < 0.5% Rn
- Life cycle: Up to 100K cycles
- Temperature range: -25°C to +70°C
- Housing material: Self extinguishable UL 94V-0 plastic
- Mechanical detents: Customizable, with optional tapers
- Taper options: Linear, Logarithmic, Alogarithmic
- Power rating: 0.25 W (lin), 0.12 W (no lin)
- Stop torque: > 10 Nom., > 14 in-oz
- Materials: Polyester substrate, carbon resistive element
- Protection: IP54 according to IEC 60529
- Adjustments: Mechanical detents, cut track option, special tapers
Buy the Piher PT-15mm Carbon U–2013 Reliable Potentiometer for Industrial Applications
Discover the versatile Piher 15mm Carbon Potentiometer, engineered for precise electrical control in industrial and consumer devices. Featuring IP54 protection, customizable tapers, detent options, and long cycle life, this component ensures reliable performance under diverse environmental conditions. Its robust construction with polyester substrate and carbon resistive element offers durability and stability. Perfect for integrating into control systems requiring accurate position sensing, it includes optional features like cut track, special tapers, and low torque variants. Buy online now for dependable quality and flexible customization.
Order your Piher Series PT-15mm Carbon Potentiometer today and enhance your projects with dependable control components designed for durability and precision.
Frequently Asked Questions
Where can I buy Piher - Amphenol PT15RV02472A2020ES?
You can click on the BUY or RFQ button to purchase PT15RV02472A2020ES from an authorized Piher - Amphenol distributor.
How do I troubleshoot issues or seek technical support for part PT15RV02472A2020ES?
You can download the PT15RV02472A2020ES datasheet or visit the Piher - Amphenol website for support.
Who is the manufacturer of PT15RV02472A2020ES?
Piher - Amphenol
