QANTEK TECHNOLOGY CORPORATION QC3CA250000F12B23M High-Precision SMD Crystal
The QC3CA series features a 2.5x3.2 mm all ceramic SMD crystal unit designed for high-density applications. With a frequency range of 12.000 to 48.000 MHz, it offers tight tolerance, stability over temperature, and low drive level, making it ideal for modem, communication, and test equipment. Its compact, low-height, epoxy-sealed package ensures durability in thin electronic devices, providing reliable performance with minimal aging effects and stable oscillation essential for precise timing in modern communication systems.
QANTEK TECHNOLOGY CORPORATION QC3CA250000F12B23M High-Precision SMD Crystal Specifications:
- Frequency Range: 12.000 to 48.000 MHz (Fundamental)
- Frequency Tolerance at 25°C: +20 to +50 ppm
- Temperature Stability: See Stability vs. Temperature Table
- Storage Temperature: -55 to +125°C
- Aging: Max. 5 ppm per year
- Load Capacitance: 10 to 32 pF
- Shunt Capacitance: 7.0 pF max
- Equivalent Series Resistance: See ESR Table
- Drive Level: 100 µW typical, 500 pW max
- Insulation Resistance: 500 MΩ at 100 Vdc + 15 Vdc
- Material: All ceramic epoxy sealed package
- Dimensions: 2.5 x 3.2 mm
- Vibration & Shock Resistance: MIL-STD compliant
- Operating & Storage Temp: -55°C to +125°C
- Frequency Stability vs. Temperature: -20°C to +85°C

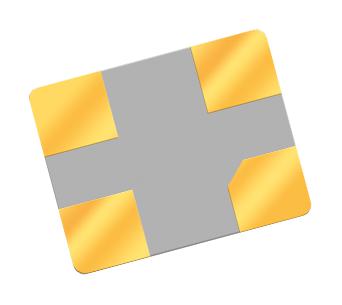

Buy the Qanttek Series QC3CA Crystal Oscillator: QC3CA250000F12B23M
Order the Qanttek high-precision SMD crystal online today to ensure reliable and stable oscillation performance for your modem, communication, or test equipment. This compact 2.5x3.2 mm all ceramic unit offers excellent temperature stability, low aging, and durability for demanding applications. Its epoxy-sealed package provides protection against environmental factors, ensuring long-lasting operation in thin electronic devices. Perfect for high-density design needs, this crystal oscillator guarantees precise timing and stable frequency control, making it an essential component for modern electronic systems.
Get Qanttek QC3CA250000F12B23M today—crafted for high-density applications with exceptional stability and reliability in compact SMD packages.
Frequently Asked Questions
Where can I buy QANTEK TECHNOLOGY CORPORATION QC3CA250000F12B23M?
You can click on the BUY or RFQ button to purchase QC3CA250000F12B23M from an authorized QANTEK TECHNOLOGY CORPORATION distributor.
How do I troubleshoot issues or seek technical support for part QC3CA250000F12B23M?
You can download the QC3CA250000F12B23M datasheet or visit the QANTEK TECHNOLOGY CORPORATION website for support.
Who is the manufacturer of QC3CA250000F12B23M?
QANTEK TECHNOLOGY CORPORATION
