QANTEK TECHNOLOGY CORPORATION QC3CA250000F18B23M ceramic crystal
The QC3CA series features a 2.5x3.2mm all ceramic SMD crystal unit designed for high-density, thin equipment applications. Operating within a frequency range of 12.000 to 48.000MHz, it offers tight tolerance and stability suitable for modems, communication, and test devices. Its epoxy-sealed ceramic package ensures durability against environmental factors. The device provides low drive level and stable aging characteristics, making it ideal for space-constrained, high-reliability electronics where precise frequency stability and robust performance are required.
QANTEK TECHNOLOGY CORPORATION QC3CA250000F18B23M ceramic crystal Specifications:
- Frequency Range: 12.000 to 48.000MHz (Fundamental)
- Frequency Tolerance at 25°C: +20 to +50ppm (standard +30ppm)
- Temperature Stability: -20 to +70°C, -40 to +85°C (see stability table)
- Aging: max. 5ppm per year
- Load Capacitance: 10 to 32pF
- Shunt Capacitance: Max. 7.0pF
- Equivalent Series Resistance: Refer to ESR table
- Drive Level: 100µW typ., 500pW max
- Insulation Resistance: 500MΩ at 100Vdc +15Vdc
- Storage Temperature: -55°C to +125°C
- Vibration and shock resistance per MIL-STD standards
- Dimensions: 2.5x3.2mm, 4-pad SMD package
- Reliability: Epoxy sealed ceramic package for durability in high density applications

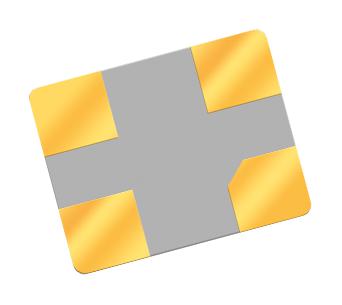

Buy the Qantek Series QC3CA 2.5x3.2MHz Crystal: QC3CA250000F18B23M
Enhance your electronic projects with the high-quality ceramic crystal from Qantek Series QC3CA. Designed for space-constrained applications, this 2.5x3.2mm SMD device offers excellent frequency stability from 12 to 48MHz. Its epoxy-sealed ceramic package ensures durability and longevity, making it suitable for modems, communication, and testing equipment. With low drive levels and tight tolerance, it provides consistent performance across temperature ranges. Purchase online today to leverage precise, stable oscillation in your electronic designs with fast, reliable delivery and expert support.
Order your Qantek Series QC3CA 2.5x3.2MHz crystal today and ensure your devices operate with reliable, stable frequency performance.
Frequently Asked Questions
Where can I buy QANTEK TECHNOLOGY CORPORATION QC3CA250000F18B23M?
You can click on the BUY or RFQ button to purchase QC3CA250000F18B23M from an authorized QANTEK TECHNOLOGY CORPORATION distributor.
How do I troubleshoot issues or seek technical support for part QC3CA250000F18B23M?
You can download the QC3CA250000F18B23M datasheet or visit the QANTEK TECHNOLOGY CORPORATION website for support.
Who is the manufacturer of QC3CA250000F18B23M?
QANTEK TECHNOLOGY CORPORATION
