QANTEK TECHNOLOGY CORPORATION QX14T50B1638400B50TT Clock Oscillator
The QX14 Series 14 pin Dual-in-Line HCMOS Clock Oscillator offers a frequency range from 0.252kHz to 150MHz, with options for 3.3V or 5.0V supply voltage, and features a hermetically sealed package for high reliability. It supports optional Tristate functionality for enable/disable control, ensuring stable operation in various applications. The device provides excellent frequency stability within ±50ppm to ±100ppm over temperature and aging, with fast rise and fall times, making it ideal for precision timing, synchronization, and embedded systems requiring stable clock signals.
QANTEK TECHNOLOGY CORPORATION QX14T50B1638400B50TT Clock Oscillator Specifications:
- Frequency Range: 0.252kHz to 150MHz
- Supply Voltage: 3.3V or 5.0V DC ±10%
- Output Logic: HCMOS
- Aging: ±5ppm per year
- Temperature Stability: ±50ppm to ±100ppm
- Operating Temperature Range: -40 to +85°C
- Storage Temperature Range: -55 to +125°C
- Output Load: 15pF typical, 30pF max
- Rise and Fall Time: 0.252 to 24MHz - 10ns max, 24.1 to 150MHz - 4ns max
- Standby Function: Tristate (Optional), Standby Current: 10pA max
- Start Up Time: 10ms max
- Pin connections: #1 Vcc, #7 GND, #8 Output, #14 Enable/Disable (if applicable)

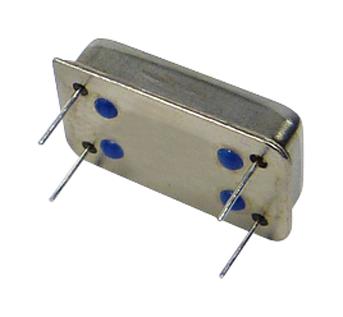

Buy the QantTek Series QX14 Clock Oscillator: QX14T50B1638400B50TT
Purchase the QantTek QX14T50B1638400B50TT clock oscillator today to ensure your electronic device maintains precise and stable timing. This high-reliability component features a wide frequency range from 0.252kHz to 150MHz, with options for 3.3V or 5V supply voltage, and incorporates a hermetically sealed package for durability. Its optional Tristate function allows for easy control, while fast rise and fall times provide excellent signal integrity. Ideal for embedded systems, communication devices, and synchronization applications, it ensures reliable operation with minimal power consumption and stable aging characteristics.
Get QantTek QX14T50B1638400B50TT clock oscillator today—designed for precision timing and long-lasting durability.
Frequently Asked Questions
Where can I buy QANTEK TECHNOLOGY CORPORATION QX14T50B1638400B50TT?
You can click on the BUY or RFQ button to purchase QX14T50B1638400B50TT from an authorized QANTEK TECHNOLOGY CORPORATION distributor.
How do I troubleshoot issues or seek technical support for part QX14T50B1638400B50TT?
You can download the QX14T50B1638400B50TT datasheet or visit the QANTEK TECHNOLOGY CORPORATION website for support.
Who is the manufacturer of QX14T50B1638400B50TT?
QANTEK TECHNOLOGY CORPORATION
