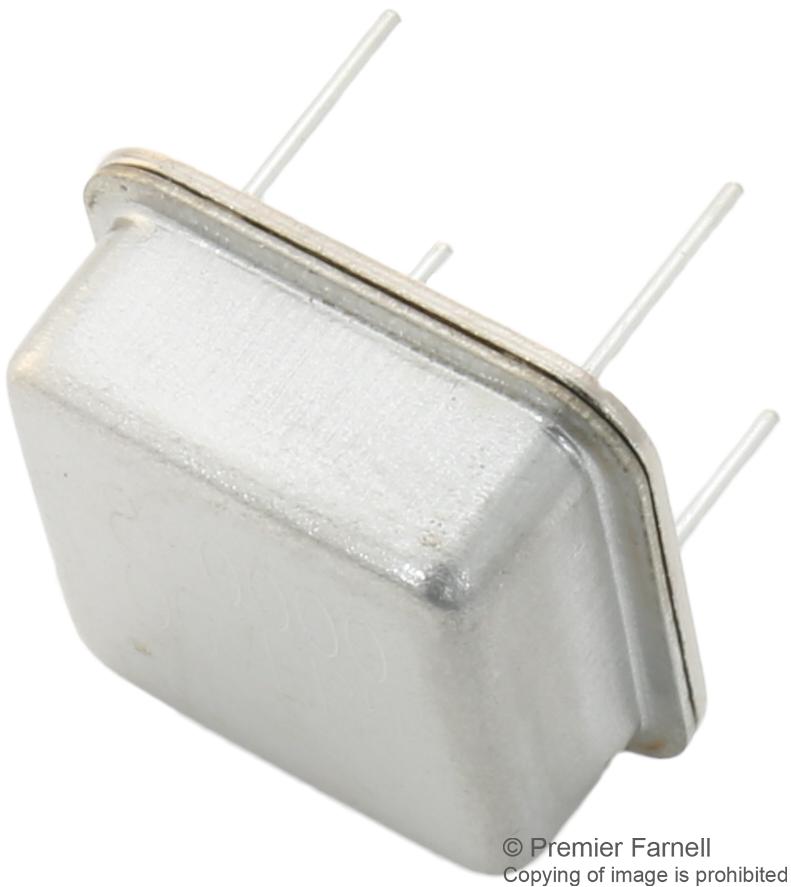

QANTEK TECHNOLOGY CORPORATION QX8T50B3200000B50TT HCMOS Clock Oscillator
The QX8 Series 8 pin Dual-in-Line HCMOS Clock Oscillator offers an industry-standard package with a frequency range from 0.252kHz to 150MHz, making it suitable for various industrial and electronic applications. It features optional Tristate functionality for enable/disable, hermetically sealed construction for enhanced reliability and low aging, and operates at both 3.3V and 5V supply voltages with stable output logic levels. This oscillator is designed for precise timing functions in communication, instrumentation, and control systems, with excellent temperature stability and low power consumption.
QANTEK TECHNOLOGY CORPORATION QX8T50B3200000B50TT HCMOS Clock Oscillator Specifications:
- Frequency Range: 0.252kHz to 150MHz
- Supply Voltage: 3.3V or 5V ±10%
- Output Logic: HCMOS
- Temperature Range: -40°C to +85°C
- Operating Temperature: -10°C to +70°C
- Storage Temperature: -55°C to +125°C
- Output Voltage Level: Von ≥ 90% Vdd, Vol ≤ 10% Vdd
- Frequency Stability: ±100ppm (24.1MHz–50MHz), ±50ppm (50.1MHz–70MHz), ±25ppm (70.1MHz–80MHz), ±5ppm aging/year
- Output Load: 40-60%, Standard 15pF max., Medium 30pF max.
- Rise/Fall Time: 0.252–24MHz: 10ns max, 24.1–50MHz: 6ns max, 50.1–70MHz: 6ns max, 70.1–80MHz: 4ns max, 80.1–150MHz: 4ns max
- Standby Function: Tristate optional, 100ns max enable/disable time, standby current 10pA max.
- Vibration: MIL-STD-202, Method 201 & 204
- Shock: MIL-STD-202, Method 213, C
- Leak Tests: MIL-STD-202, Method 112
Buy the Qantek QX8T50B3200000B50TT – Reliable HCMOS Clock Oscillator for Industrial Applications
Purchase the Qantek QX8T50B3200000B50TT clock oscillator online today. Designed for industrial, instrumentation, and communication systems, it offers precise frequency stability, hermetically sealed reliability, and optional Tristate functionality for flexible control. Operating with high-performance stability over wide temperature ranges, it features low power consumption and excellent output voltage accuracy. Ready for immediate deployment, this oscillator supports various signal timing applications. Order now to ensure your systems operate with precise, reliable timing—delivering long-term performance and operational confidence in demanding environments.
Get Qantek QX8T50B3200000B50TT today—built for precision and long-lasting durability in timing solutions.
