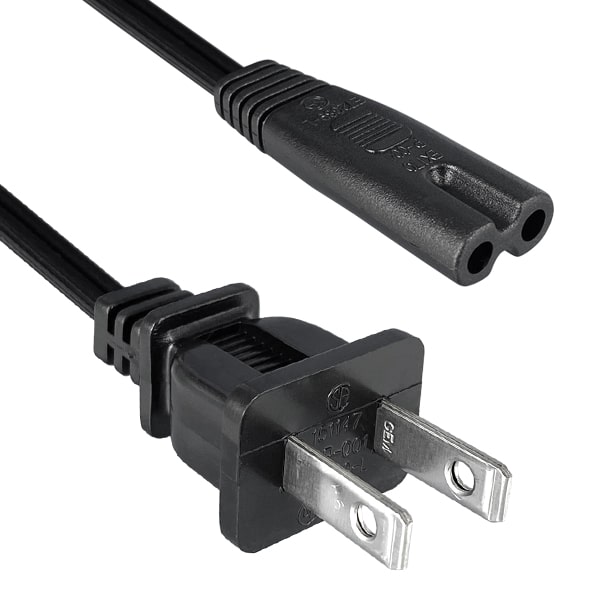

QUALTEK ELECTRONICS 22305101 Power Cord NEMA 1-15P to IEC C7
The Qualtek Electronics 223051-01 is a power cord designed for connecting electronic devices to standard North American power outlets. It combines a NEMA 1-15P plug for compatibility with US power outlets and an IEC 60320 C7 connector, commonly used by laptops, monitors, and other peripherals. This cord is UL and cUL listed, ensuring safety and reliability, and is RoHS compliant, meeting environmental standards. With a temperature rating of 105°C and a current rating of 7A at 125V, it provides a secure and efficient power connection for a wide range of applications.
QUALTEK ELECTRONICS 22305101 Power Cord NEMA 1-15P to IEC C7 Specifications:
- Cordage: SPT-2, 18AWG / 2C, UNSHIELDED
- Temperature Rating: 105°C
- Voltage Rating: 125V
- Current Rating: 7A
- Jacket Color: Black
- Plug Type: NEMA 1-15P
- Connector Type: IEC 60320 C7
- Approvals: UL, cUL
- RoHS Compliant: Yes
- Dimension Range (mm) 0-1: 0.15
- Dimension Range (mm) 1-6: 0.20
- Dimension Range (mm) 6-18: 0.30
- Dimension Range (mm) 18-50: 0.50
- Dimension Range (mm) 50-120: 0.70
- Dimension Range (mm) 120-250: 0.90
- Dimension Range (mm) 250-500: 1.20
