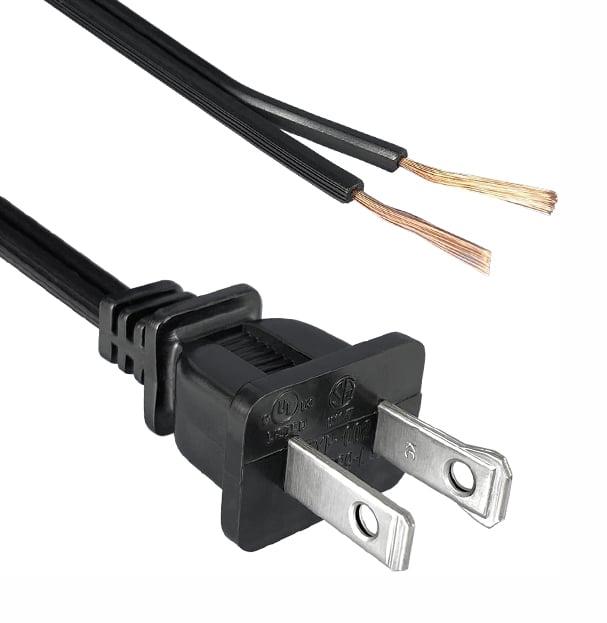

QUALTEK ELECTRONICS 22305301 NEMA Power Cord
The Qualtek 223053-01 is a robust power cord designed for various industrial and commercial applications. It connects a NEMA 1-15P polarized plug to a split 2” connector with a 5/8” strip. Constructed with 18AWG 2C wire, this cord offers reliable power transmission with a voltage rating of 125V and a current rating of 10A. It is UL and cUL listed, ensuring compliance with safety standards, and is RoHS compliant for environmentally conscious applications. Ideal for powering equipment in offices, workshops, and other environments.
QUALTEK ELECTRONICS 22305301 NEMA Power Cord Specifications:
- Cordage: SPT-1, 18AWG / 2C, Unshielded
- Temperature Rating: 105°C
- Voltage Rating: 125V
- Current Rating: 10A
- Jacket Color: Black
- Plug: NEMA 1-15P Polarized
- Other End: Split 2”, Strip 5/8”
- Approvals: UL, cUL
- RoHS Compliant: Yes
- Dim Range (mm) 0-1: Tolerance +/- 0.15
- Dim Range (mm) 1-6: Tolerance +/- 0.20
- Dim Range (mm) 6-18: Tolerance +/- 0.30
- Dim Range (mm) 18-50: Tolerance +/- 0.50
- Dim Range (mm) 50-120: Tolerance +/- 0.70
- Dim Range (mm) 120-250: Tolerance +/- 0.90
- Dim Range (mm) 250-500: Tolerance +/- 1.20
- Unit: in
Buy the 223053-01 QUALTEK ELECTRONICS NEMA Power Cord | myMectronic
Purchase the Qualtek 223053-01 power cord securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy QUALTEK ELECTRONICS 22305301?
You can click on the BUY or RFQ button to purchase 22305301 from an authorized QUALTEK ELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part 22305301?
You can download the 22305301 datasheet or visit the QUALTEK ELECTRONICS website for support.
Who is the manufacturer of 22305301?
QUALTEK ELECTRONICS
