QUALTEK ELECTRONICS 701WX203 Power Inlet

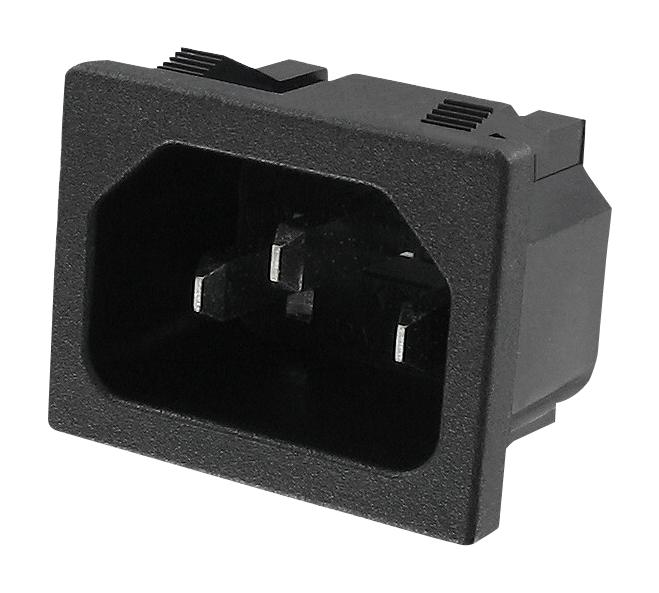

This IEC 320 C14 power inlet provides reliable AC power connection with a snap-in mounting for quick installation. It supports terminal connections via .187 Q.D. or solder, ensuring versatility. Rated for 15A at 250VAC per UL and CSA standards, and 10A at 250VAC under VDE certification, it is suitable for various electronic and electrical devices. The inlet is compatible with panel thicknesses from 0.8 mm to 2.0 mm, featuring copper alloy tin-plated terminals for conductivity and durability. Its thermoplastic housing offers insulation and mechanical strength, making it ideal for industrial applications where easy installation and safety are critical.
QUALTEK ELECTRONICS 701WX203 Power Inlet Specifications:
- Rated Current: 15A (UL, CSA), 10A (VDE)
- Voltage Rating: 250VAC
- Housing Material: Thermoplastic PPC
- Terminal Material: Copper Alloy, Tin-Plated
- Mounting: Snap-In type
- Panel Thickness Compatibility: 0.8mm to 2.0mm
- Insulation Resistance: Over 100 Megaohms at 500V DC
- Dielectric Resistance: 2000V AC for 1 minute
- RoHS Compliant
- Certifications: UL Listed, CSA Certified, VDE Approved
- Terminal Options: Q.D. or Solder
- Dimensions: Based on standard IEC 320 C14 inlet, suitable for industrial control panels
Buy the Buy Qualtek IEC 320 C14 Power Inlet Part Number 701WX203 Online
Purchase the Qualtek Power Inlet online today for dependable electrical connections. Featuring a snap-in mount for quick installation, this IEC 320 C14 inlet supports panel thicknesses from 0.8mm to 2.0mm. Designed with copper alloy terminals for durability and high conductivity, it is rated for 15A at 250VAC in compliance with UL, CSA, and VDE standards. Its excellent insulation resistance and dielectric properties ensure safety and reliability in industrial and electronic applications. Order now for fast shipping and quality assurance.
Get Qualtek 701WX203 today—designed for reliable power connections, easy snap-in installation, and durable copper alloy terminals for wide industrial use.
Frequently Asked Questions
Where can I buy QUALTEK ELECTRONICS 701WX203?
You can click on the BUY or RFQ button to purchase 701WX203 from an authorized QUALTEK ELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part 701WX203?
You can download the 701WX203 datasheet or visit the QUALTEK ELECTRONICS website for support.
Who is the manufacturer of 701WX203?
QUALTEK ELECTRONICS
