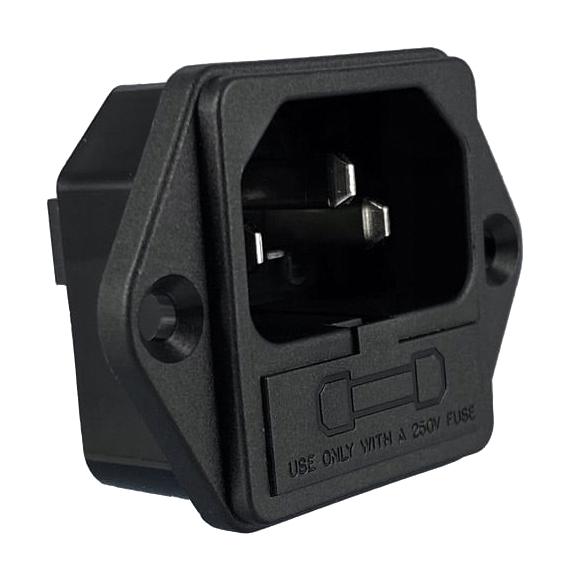

QUALTEK ELECTRONICS 719W0002 Power Inlet
This IEC 320 C14 power inlet with fuseholder is designed for screw mounting and features solder tab terminals. Rated for 10A at 250VAC, it complies with UL and CSA standards and also meets VDE 10A at 250VAC. Constructed with nylon molding and nickel-plated brass contacts, it is suitable for industrial power connections. The fuseholder accommodates standard 5 x 20mm fuses, with a maximum operating temperature of +65°C. Approvals include UL, CSA, and VDE, ensuring safety and reliability for various electronic applications.
QUALTEK ELECTRONICS 719W0002 Power Inlet Specifications:
- Material: Nylon molding, Brass contacts with Nickel plating and Tinned tags
- Rated Voltage: 250VAC
- Rated Current: 10A
- Operational Temperature: -40°C to +70°C
- Maximum Pin Temperature: +65°C
- Insulation Resistance: >10 MΩ
- Contact Resistance: Less than 10 mΩ
- AC Breakdown: Pole-to-pole 5kV, poles-to-panel 4.0kV
- Approval Standards: UL, CSA, VDE
- Fuseholder: Dual, one active and one spare (fuses not included), recommended size 5 x 20mm
- Dimensions: Panel cutout approximately 27mm, overall depth includes 14mm and 24mm mounting details
Buy the Qualtek 719W– Reliable IEC Power Inlet for Industrial Applications
Purchase your Qualtek Power Inlet today online and ensure secure, reliable power connections for your electronic and industrial projects. Featuring UL, CSA, and VDE approvals, this IEC 320 C14 inlet with fuseholder provides a professional-grade solution. It is designed for screw mounting with solder tab terminals, rated for 10A at 250VAC. The durable nylon molding and plated brass contacts enable safe operation across a temperature range of -40°C to +70°C. Get your part now for seamless integration into your electrical systems and reliable power delivery.
Order your Qualtek Series 719W power inlet today and equip your projects with dependable, UL and CSA certified power connections for industrial use.
Frequently Asked Questions
Where can I buy QUALTEK ELECTRONICS 719W0002?
You can click on the BUY or RFQ button to purchase 719W0002 from an authorized QUALTEK ELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part 719W0002?
You can download the 719W0002 datasheet or visit the QUALTEK ELECTRONICS website for support.
Who is the manufacturer of 719W0002?
QUALTEK ELECTRONICS
