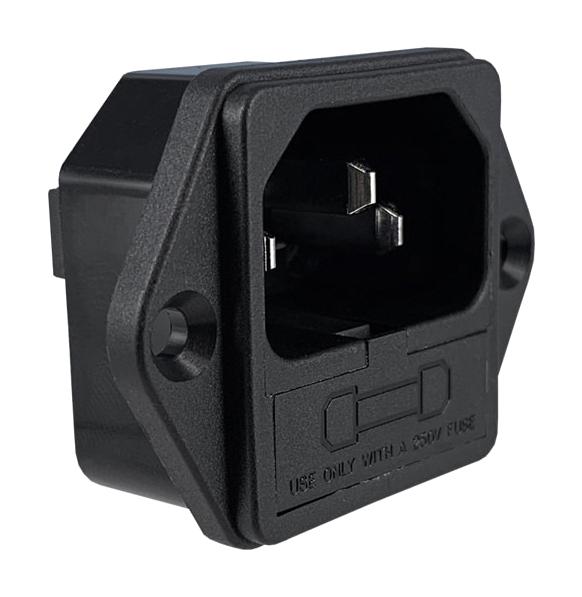

QUALTEK ELECTRONICS 719W0004 IEC Power Inlet
This IEC 320 power inlet with fuseholder is rated for 10A at 250VAC, featuring quick disconnect terminals for easy installation. It is approved by UL, CSA, and VDE (except VDE approval may be series-specific). Designed for screw mounting, it provides reliable power connection with a dielectric strength of 2000V AC and insulation resistance of at least 100M ohms. Suitable for various electronic and electrical applications, the fuseholder accommodates 5 x 20mm fuses, ensuring safety and compliance within operating temperature limits of -10°C to +70°C. This component is RoHS compliant, offering durability and safety in power supply designs.
QUALTEK ELECTRONICS 719W0004 IEC Power Inlet Specifications:
- Rating: 10A 250V AC
- Dielectric Strength: 2000V AC/1mA 1min
- Insulation Resistance: 100M Ohm minimum at 500VDC
- Approval: UL, CSA, VDE (VDE may not approve series 719W)
- Fuseholder: Dual, one active, one spare, recommended size 5 x 20mm
- Mounting: Screw mounting
- Terminal Type: Quick disconnect (.250 Q.D.)
- Operating Temperature: -10°C to +70°C
- Max Pin Temperature: +70°C
- RoHS compliant
- Physical Dimensions: Not specified in OCR, standardized for IEC 320 with design compliant to specifications
Buy the Qualtek Series IEC Power Inlet: 719W0004
Purchase the Qualtek IEC Power Inlet with fuseholder today for safe and reliable power connections in your electronic devices. Featuring quick disconnect terminals for easy installation, this component is rated for 10A at 250VAC and approved by UL, CSA, and VDE (series-specific). Designed for screw mounting, it offers robust dielectric strength of 2000V AC, insulation resistance over 100M ohms, operating temperature range from -10°C to +70°C, and RoHS compliance. Ideal for ensuring safe power supply in various electrical and electronic applications, this IEC inlet provides efficiency and compliance.
Buy Qualtek 719W0004 power inlet with fuseholder now and experience reliable power connection with quick disconnect terminals and UL, CSA, VDE approval.
Frequently Asked Questions
Where can I buy QUALTEK ELECTRONICS 719W0004?
You can click on the BUY or RFQ button to purchase 719W0004 from an authorized QUALTEK ELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part 719W0004?
You can download the 719W0004 datasheet or visit the QUALTEK ELECTRONICS website for support.
Who is the manufacturer of 719W0004?
QUALTEK ELECTRONICS
