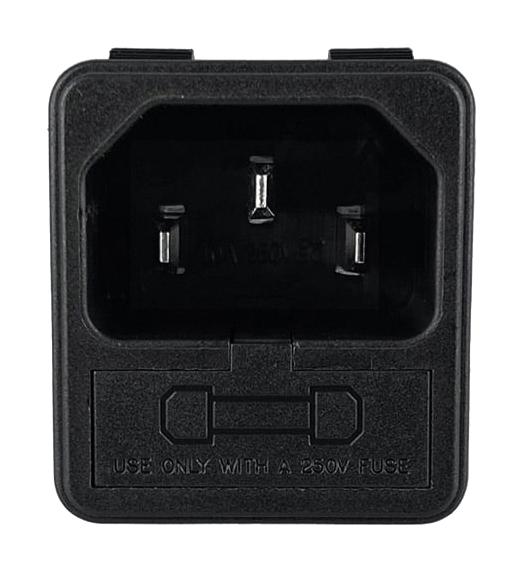

QUALTEK ELECTRONICS 723WX204 Universal Power Inlet
This IEC 320 C14 power inlet features a fuse holder with a snap-in mount, designed for easy installation into panels with thicknesses ranging from 0.8 mm to 2.0 mm. It is rated for 10A at 250VAC according to UL and CSA standards, and also complies with VDE specifications (except for the 719W series). The terminal connection utilizes .250 quick disconnect (Q.D.) terminals for secure and reliable wiring. Ideal for electronic equipment requiring a robust and easy-to-install power inlet with fuse holder functionality, ensuring safety and compliance.
QUALTEK ELECTRONICS 723WX204 Universal Power Inlet Specifications:
- Rating: 10A 250V AC
- Insulation Resistance: 100M ohm at 500V DC minimum
- Dielectric Strength: 2000V AC/1 mA for 1 minute
- Approval: UL, CSA, VDE
- Panel Thickness Range: 0.8 mm to 2.0 mm
- Terminal Type: .250 quick disconnect (Q.D.)
- Fuse Holder: dual, one active, one spare (fuses not included, recommended size 5 x 20mm)
- RoHS compliant
- Fuseholder: snap-in mount design for easy installation
- Maximum current: 10A at 250VAC
- Dimensions and cutout specifications available in detailed technical drawings
Buy the Qualtek Series Universal Power Inlet: 723WX204
Order the Qualtek Universal Power Inlet with fuse holder online today to ensure safe, reliable power connections for your electronic equipment. Featuring a snap-in mount for quick installation, rated for 10A 250VAC, and compliant with UL, CSA, and VDE standards. Its versatile design supports panel thicknesses from 0.8 mm to 2.0 mm, with secure quick disconnect terminals for reliable wiring. Perfect for assemblies requiring a robust and compliant power inlet solution, delivering ease of use, safety, and peace of mind.
Buy Qualtek 723WX204 now and experience unmatched reliability and performance in power management for electronic devices.
Frequently Asked Questions
Where can I buy QUALTEK ELECTRONICS 723WX204?
You can click on the BUY or RFQ button to purchase 723WX204 from an authorized QUALTEK ELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part 723WX204?
You can download the 723WX204 datasheet or visit the QUALTEK ELECTRONICS website for support.
Who is the manufacturer of 723WX204?
QUALTEK ELECTRONICS
