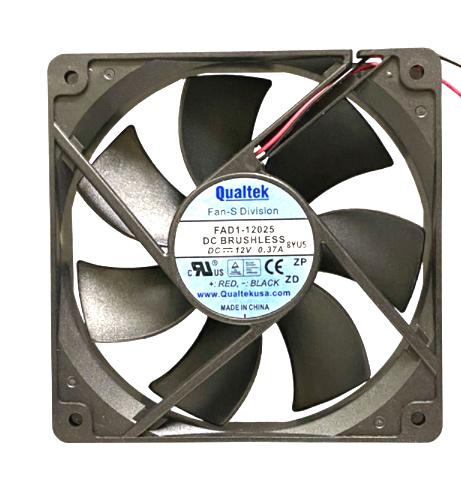

QUALTEK ELECTRONICS FAD112025CBMW12 Axial Fan
The FAD1-12025 series comprises 120x120x25mm brushless DC axial fans designed for efficient airflow and reliable operation in cooling applications. Available with different bearing types—ball, sleeve, or hydro dynamic—these fans support various operating temperatures, from -10°C to 70°C, and boast long life expectancy, up to 70,000 hours for ball bearings. They feature UL 1007 AWG 24 wire leads, a plastic UL94V-0 frame, and impeller material optimized for durability and performance. Suitable for electronics cooling, ventilation, and industrial applications, these fans deliver adjustable airflow and static pressure levels across models, ensuring versatile efficiency and dependability.
QUALTEK ELECTRONICS FAD112025CBMW12 Axial Fan Specifications:
- Frame Size: 120x120x25mm
- Motor Type: Brushless DC
- Bearing Options: Two Ball, Sleeve, Hydro Dynamic
- Operating Temperature: -10°C to 70°C
- Life Expectancy: Up to 70,000 hours (Ball), 30,000 hours (Sleeve), 50,000 hours (Hydro Dynamic)
- Wire Leads: UL 1007 AWG 24, 280mm length
- Frame Material: Plastic UL94V-0
- Impeller Material: Plastic UL94V-0
- Rated Voltage Options: 12V, 24V, 48V
- Airflow Range: 57 to 99 CFM depending on model
- Static Pressure: Up to 0.174 inAq (4.419 mmAq) depending on model
- Maximum Speed: 1500 to 2500 rpm depending on model
- Weight: Approximately 156g
Buy the Qualtek Series FAD1-12025 DC Axial Fan: FAD1-12025CBMW12
Discover the high-performance Qualtek Series FAD1-12025CBMW12 axial fan, designed with durable UL94V-0 plastic and multiple bearing options. Offering reliable operation at temperatures from -10°C to 70°C, it provides excellent airflow rates up to 99 CFM and static pressure support for various cooling needs. Its long life expectancy of up to 70,000 hours ensures sustainability and low maintenance. Easy to install with UL 1007 wire leads, this fan is ideal for electronics, industrial cooling, refrigeration, and ventilation applications, ensuring optimal performance and efficiency.
Order your Qualtek Series FAD1-12025CBMW12 axial fan today and ensure efficient, reliable cooling for your electronic or industrial projects.
Frequently Asked Questions
Where can I buy QUALTEK ELECTRONICS FAD112025CBMW12?
You can click on the BUY or RFQ button to purchase FAD112025CBMW12 from an authorized QUALTEK ELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part FAD112025CBMW12?
You can download the FAD112025CBMW12 datasheet or visit the QUALTEK ELECTRONICS website for support.
Who is the manufacturer of FAD112025CBMW12?
QUALTEK ELECTRONICS
