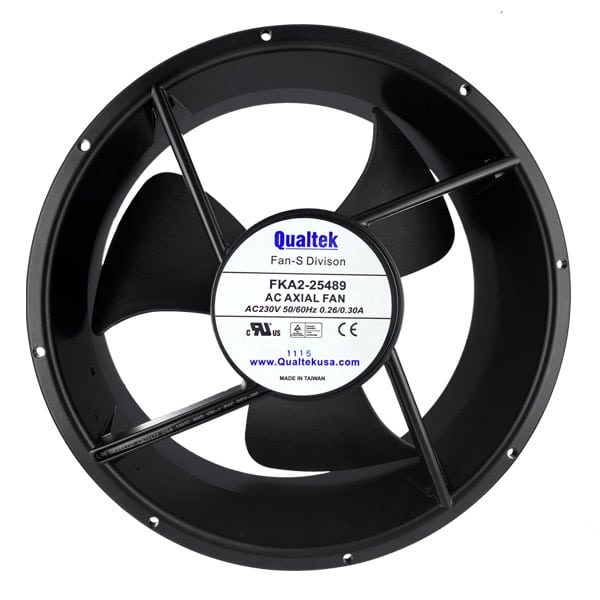

QUALTEK ELECTRONICS FKA225489QBHT3F Axial Capacitor-Run Fan
The Qualtek Electronics FKA2-25489QBHT3F is a robust axial fan designed for a wide range of industrial and commercial applications. This fan utilizes a capacitor-run induction motor for efficient operation and incorporates thermal protection to ensure longevity. The two ball bearing design provides a long life expectancy of 50,000 hours. Available with wire leads or terminal connections, this fan delivers reliable airflow with controlled noise levels, making it suitable for ventilation, cooling, and exhaust systems.
QUALTEK ELECTRONICS FKA225489QBHT3F Axial Capacitor-Run Fan Specifications:
- Series: FKA2 25489
- Dimensions: 254x89mm
- Motor Type: Capacitor-Run Induction Motor
- Motor Protection: Thermal Protected
- Bearing Type: Two Ball
- Connection: UL 1015 AWG 20, 300mm Wire Leads or Terminal
- Frame Material: Aluminum Alloy
- Impeller Material: Plastic UL94V-0
- Operating Temperature: -10°C~70°C
- Life Expectancy: 50,000 Hours
- Rated Voltage (VAC): 15, 30
- Rated Frequency (Hz): 50/60
- Rated Current (A): 0.55/0.62, 0.26/0.30, 0.22/0.24, 0.16/0.14
- Rated Power (W): 56.00/67.80, 55.40/62.80, 24.20/26.50, 32.20/28.80
- Rated Speed (rpm): 2100/2000
- Maximum Airflow (CMM): 19.244/17.829
- Maximum Airflow (CFM): 680/630
- Maximum Static Pressure (InAq): 0.346/0.276
- Maximum Static Pressure (mmAq): 8.788/7.010
- Noise Level (dB/A): 66.0/62.0
- Weight (g): 2000
