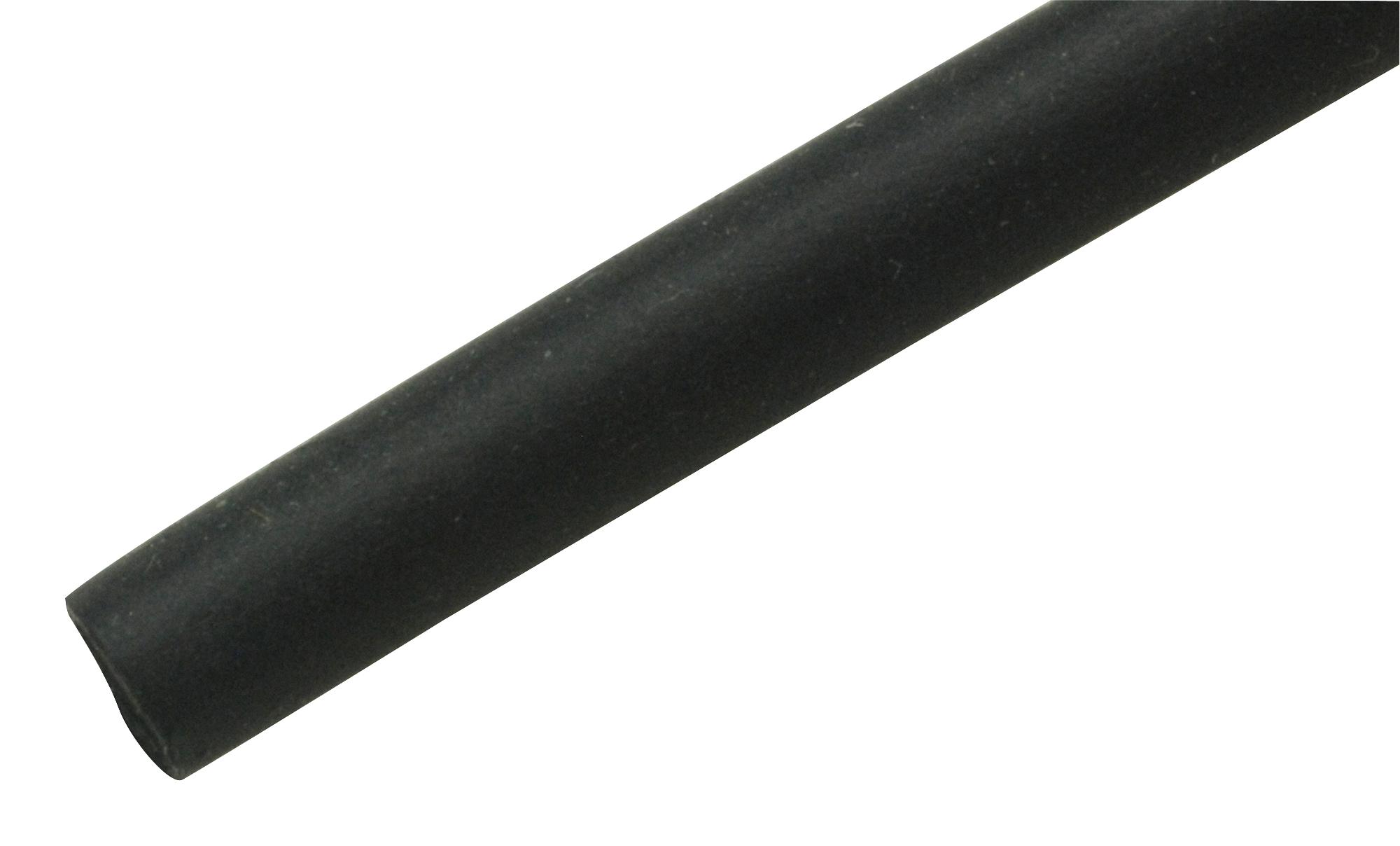

QUALTEK ELECTRONICS Q2F101MS50FT Heat Shrink Tubing
Q2-F heat shrink thin wall tubing offers flexible, flame-retardant insulation for electrical components, cables, and connectors. It withstands temperatures from -55°C to +135°C, providing excellent resilience and mechanical strength. Suitable for both commercial and military applications, it’s environmentally friendly, RoHS compliant, and free of hazardous substances. The tubing is available in standard colors such as black, red, and blue, with a shrink ratio of 2:4, and ensures safe, high-quality electrical insulation and identification withstanding rigorous conditions and ensuring long-lasting performance.
QUALTEK ELECTRONICS Q2F101MS50FT Heat Shrink Tubing Specifications:
- Operating Temperature: -55°C to +135°C
- Shrink Ratio: 2:4
- Minimum Shrink Temperature: 70°C
- Full Recovery Temperature: 100°C
- Material: No PBB's, PBBO's, PBBE’s, free of Cadmium & Lead
- Color: Black, red, blue, yellow, green, white, clear (class 2)
- Dielectric Strength: >20kV / mm
- Tensile Strength: >14 MPa
- Ultimate Elongation: > 600%
- Volume Resistance: >10^10 Ω·cm
- Flammability: Passes VW-1
- Approvals: UL File No. E236137, 242540; SAE-AMS-DTL-23053/5 Class 1 & 3; Sony-SS-00259
- Temperature Rating: -55°C to +135°C
- Voltage Withstand: AC 2500V, 4 min, No breakdown
- Eccentricity: <30%
- Longitudinal Shrinkage: 45%
- E1 Certification: UL Listed, RoHS Compliant
Buy the Qualtek Series Q2 Heat Shrink Tubing: Q2F101MS50FT
Enhance your electrical insulation and component protection with our high-quality heat shrink tubing. Designed for versatile industrial, military, and commercial use, it offers excellent resilience, flame retardancy, and environmental compliance. Easy to install, it shrinks to fit wires, cables, and connectors with a consistent 2:4 ratio. Ideal for insulating, bundling, and color-coding applications, this tubing withstands extreme temperatures from -55°C to +135°C, ensuring long-lasting performance. Purchase online today for reliable, high-performance electrical solutions with quick shipping and excellent support.
Buy Qualtek heat shrink tubing Q2F101MS50FT now and experience unmatched electrical insulation, flexibility, and reliable protection under harsh conditions.
