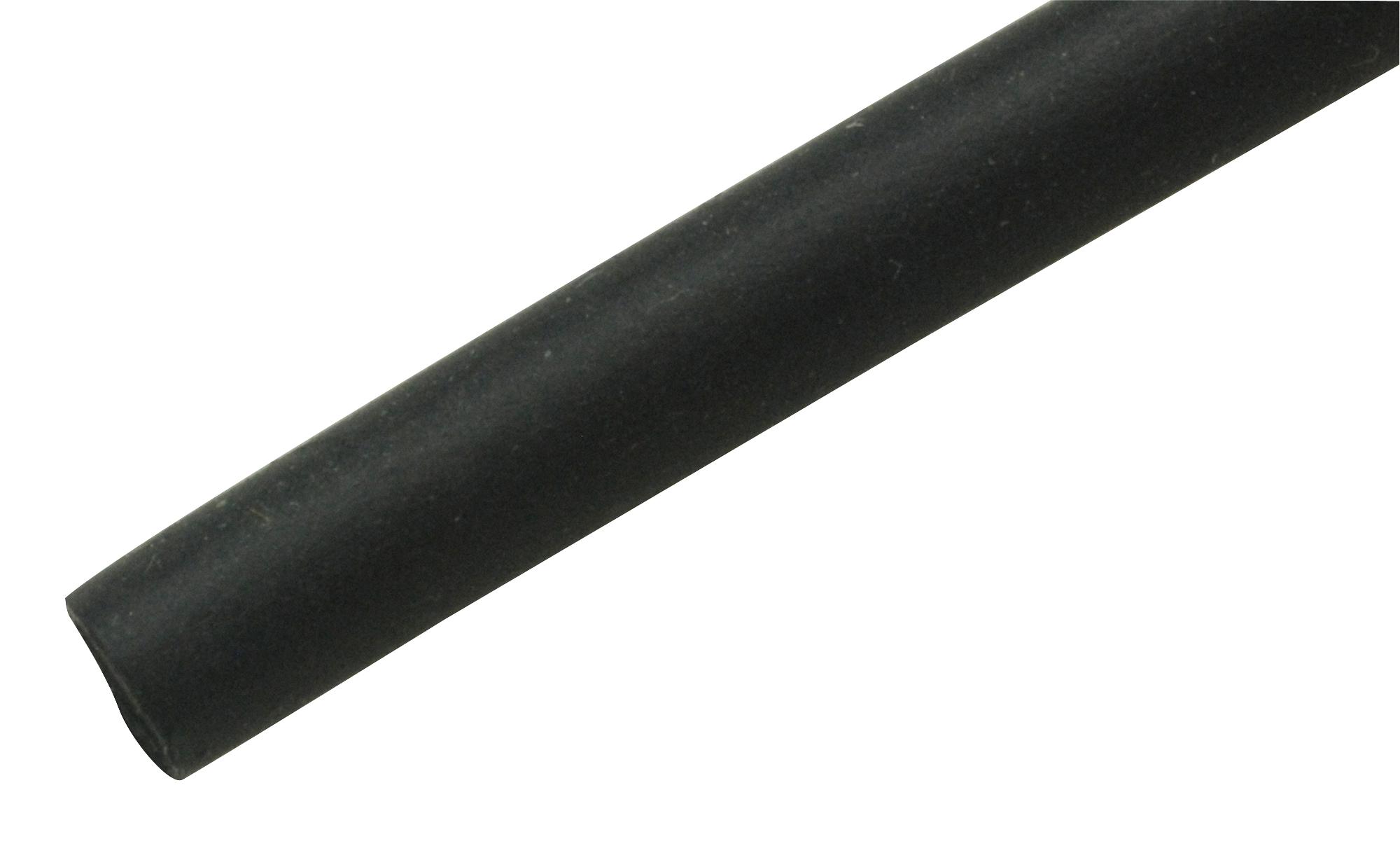

QUALTEK ELECTRONICS Q2F11201QB48IN5 Heat Shrink Tubing
Q2-F heat shrink thin wall tubing offers excellent electrical insulation, flexibility, and environmental resistance, making it suitable for military and commercial applications. It withstands temperatures from -55°C to +135°C, with a minimum shrink temperature of 70°C and full recovery at 100°C. Made from environmentally friendly, flame-retardant materials, it is RoHS compliant and free of PBBs, PBBOs, PBBEs, cadmium, and lead. Available in multiple colors and sizes, it protects wires, manages harnesses, and color-codes cables efficiently, ensuring reliable performance in demanding conditions.
QUALTEK ELECTRONICS Q2F11201QB48IN5 Heat Shrink Tubing Specifications:
- Operating Temperature: -55°C to +135°C
- Minimum Shrink Temperature: 70°C
- Full Recovery Temperature: 100°C
- Tensile Strength: >14 MPa
- Ultimate Elongation: >600%
- UL 224 Shrinkage: 45%
- Dielectric Strength: >20kV/mm
- Volume Resistance: >10^11 Ω·cm
- Material: Environmentally friendly, flame-retardant, no PBBs, PBBOs, or PBBEs
- Colors: Black, red, blue, yellow, green, white, clear
- Sizes: Ranging from 12 mm to 127 mm diameter
- Certifications: UL, CSA, VW-1, RoHS compliant
- Applicable Standards: SAE-AMS-DTL-23053/5 Class 1 & 3, Sony-SS-00259
- Packaging: Various lengths, cut pieces, and standard reels
Buy the Buy Environmentally Friendly Heat Shrink Tubing Part Number Q2F11201QB48IN5 Online
Enhance your projects with our high-quality heat shrink tubing, offering excellent electrical insulation, flexibility, and environmental resistance. Suitable for military and commercial uses, it withstands extreme temperatures from -55°C to +135°C, with a minimum shrink temperature of 70°C and full recovery at 100°C. Made from environmentally friendly, flame-retardant materials, this tubing is RoHS compliant and free of harmful substances like PBBs and lead. Available in multiple colors and sizes, it protects wires, manages harnesses, and color-codes cables effectively, ensuring durability and safety in harsh environments.
Order your Qualtek Series Q2F11201QB48IN5 heat shrink tubing today and ensure reliable electrical insulation and protection for demanding applications.
Frequently Asked Questions
Where can I buy QUALTEK ELECTRONICS Q2F11201QB48IN5?
You can click on the BUY or RFQ button to purchase Q2F11201QB48IN5 from an authorized QUALTEK ELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part Q2F11201QB48IN5?
You can download the Q2F11201QB48IN5 datasheet or visit the QUALTEK ELECTRONICS website for support.
Who is the manufacturer of Q2F11201QB48IN5?
QUALTEK ELECTRONICS
