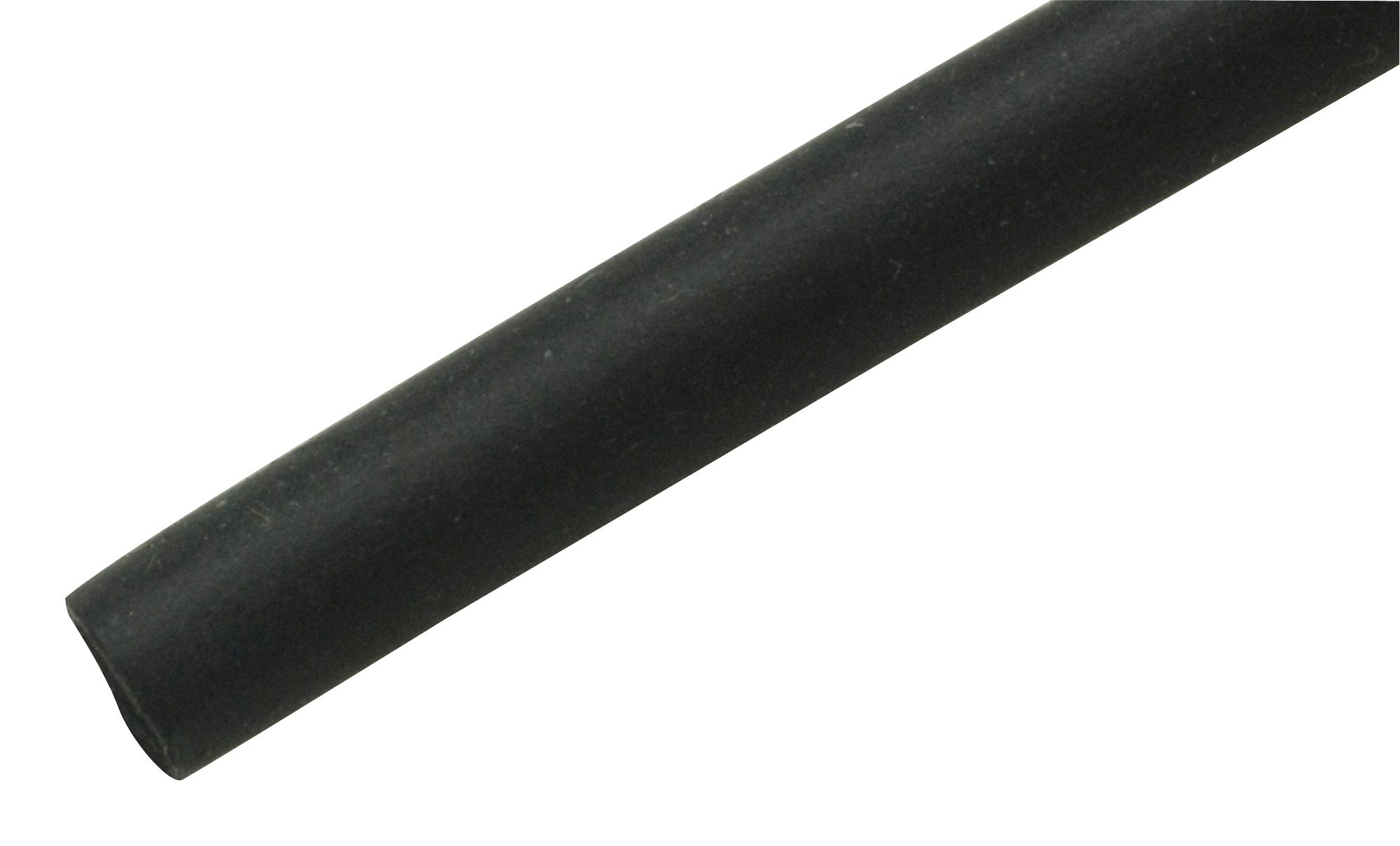

QUALTEK ELECTRONICS Q2F201MS50FT Heat Shrink Tubing
Heat shrink thin wall tubing is an environmentally friendly, flexible, and highly flame-retardant solution for electrical insulation and protection. Suitable for both commercial and military applications, it provides excellent resilience for splices, disconnect terminals, and wire harness bundling. With a shrink ratio of 2:4, operating temperatures from -55°C to +135°C, and RoHS compliance, this tubing is ideal for identifying, color-coding, and insulating wires, cables, and components efficiently. It meets rigorous safety standards including UL and CSA approvals, ensuring reliable performance in demanding environments.
QUALTEK ELECTRONICS Q2F201MS50FT Heat Shrink Tubing Specifications:
- Material: No PBB's, PBBO's, PBBE’s, free of Cadmium & Lead
- Operating Temperature: -55°C to +135°C
- Minimum Shrink Temperature: 70°C
- Full Recovery Temperature: 100°C
- Tensile Strength: >14 MPa
- Ultimate Elongation: >600%
- Longitudinal Shrinkage: 45-50%
- Dielectric Strength: >20kV/mm
- Voltage Withstand: 2500V AC for 4 min, no breakdown
- RoHS Compliant, Flame-retardant, VW-1 approved
- Standard Colors: Black, red, blue, yellow, green, white, clear (class 2)
- Dimensions range from 12 mm to 159 mm in diameter, with wall thicknesses from 0.40 mm to 0.68 mm
- Packaging options include cut pieces, spools, and boxes, with lengths up to 1000 ft specific to size
Buy the Eco Industry Heat Shrink Thin Wall Tubing: Q2F201MS50FT
Purchase your Heat Shrink Tubing online today to benefit from fast delivery and trusted safety features. This flexible, flame-retardant insulation solution meets RoHS standards and safety certifications like UL and CSA. Its excellent resilience and high dielectric strength make it perfect for protecting and insulating wires, cables, and components across various industries, including military and commercial. With a wide range of diameters, wall thicknesses, and color options, buying online offers convenience and assurance you get the exact size and quality required for your electrical and electronic applications.
Order your Eco Industry Heat Shrink Thin Wall Tubing Q2F201MS50FT today and ensure reliable insulation for your electric projects with high safety standards.
Frequently Asked Questions
Where can I buy QUALTEK ELECTRONICS Q2F201MS50FT?
You can click on the BUY or RFQ button to purchase Q2F201MS50FT from an authorized QUALTEK ELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part Q2F201MS50FT?
You can download the Q2F201MS50FT datasheet or visit the QUALTEK ELECTRONICS website for support.
Who is the manufacturer of Q2F201MS50FT?
QUALTEK ELECTRONICS
