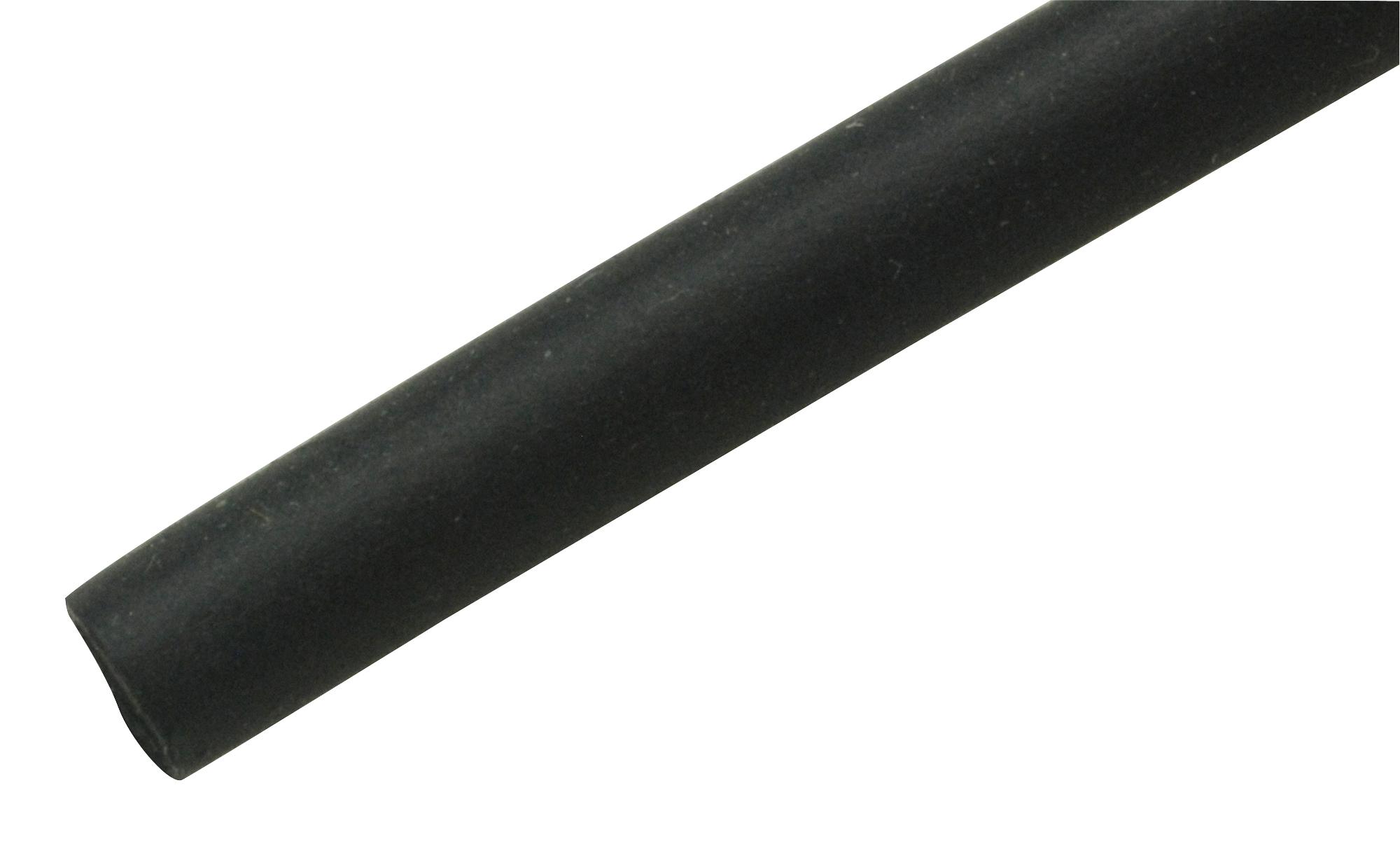

QUALTEK ELECTRONICS Q2F33201MS100FT Heat shrink tubing
Heat shrink thin wall tubing offers excellent electrical insulation, environmental protection, and flexibility for various industrial and military applications. Made from environmentally friendly, flame-retardant materials, it withstands temperatures from -55°C to +135°C. This tubing shrinks to 2:4 ratio at 100°C, providing a reliable seal for splices, connectors, and wires while resisting UV andaging effects. Available in multiple colors including black, red, blue, yellow, green, white, and clear, it is RoHS compliant, UL listed, and ideal for cable bundling, wire identification, and protective insulation in challenging environments.
QUALTEK ELECTRONICS Q2F33201MS100FT Heat shrink tubing Specifications:
- Material: Environmentally friendly, flame-retardant polymer
- Shrink Ratio: 2:4
- Operating Temperature Range: -55°C to +135°C
- Shrink Temperature: 70°C (minimum), full recovery at 100°C
- Dielectric Strength: >20kV / mm
- Tensile Strength: >14 MPa
- Ultimate Elongation: > 600%
- UL 224 Shrinkage: 45%
- Eccentricity: <30%
- UL File Number: E236137, 242540
- Approvals: VW-1, 600V, SAE-AMS-DTL-23053/5 Class 1 & 3
- RoHS Compliant, Meets various industry standards
- Colors: Black, red, blue, yellow, green, white, clear
- Volume Resistance: >10^10 Ω·cm
- Flammability: Passes vw-1 flame test
- Dimensions: Diameter varies from 6 mm to 159 mm depending on size, wall thickness from 0.40 mm to 0.68 mm
Buy the Buy Qualtek Heat Shrink Tubing Part Number Q2F33201MS100FT Online
Purchase Qualtek Heat Shrink Tubing Part Number Q2F33201MS100FT online today and enjoy fast delivery. This flexible, flame-retardant thin wall tubing is designed to provide excellent insulation and environmental resistance. Operating from -55°C to +135°C, it is perfect for protecting wires, splices, and components in harsh conditions. With a 2:4 shrink ratio, it offers reliable sealing and bundling for electrical and automotive applications. Available in multiple colors, RoHS compliant, UL listed, and ideal for industrial wiring and cable management needs, it ensures your project safety and durability.
Order your Qualtek Heat Shrink Thin Wall Tubing Part Number Q2F33201MS100FT today and ensure reliable electrical insulation with flexible, flame-retardant protection.
