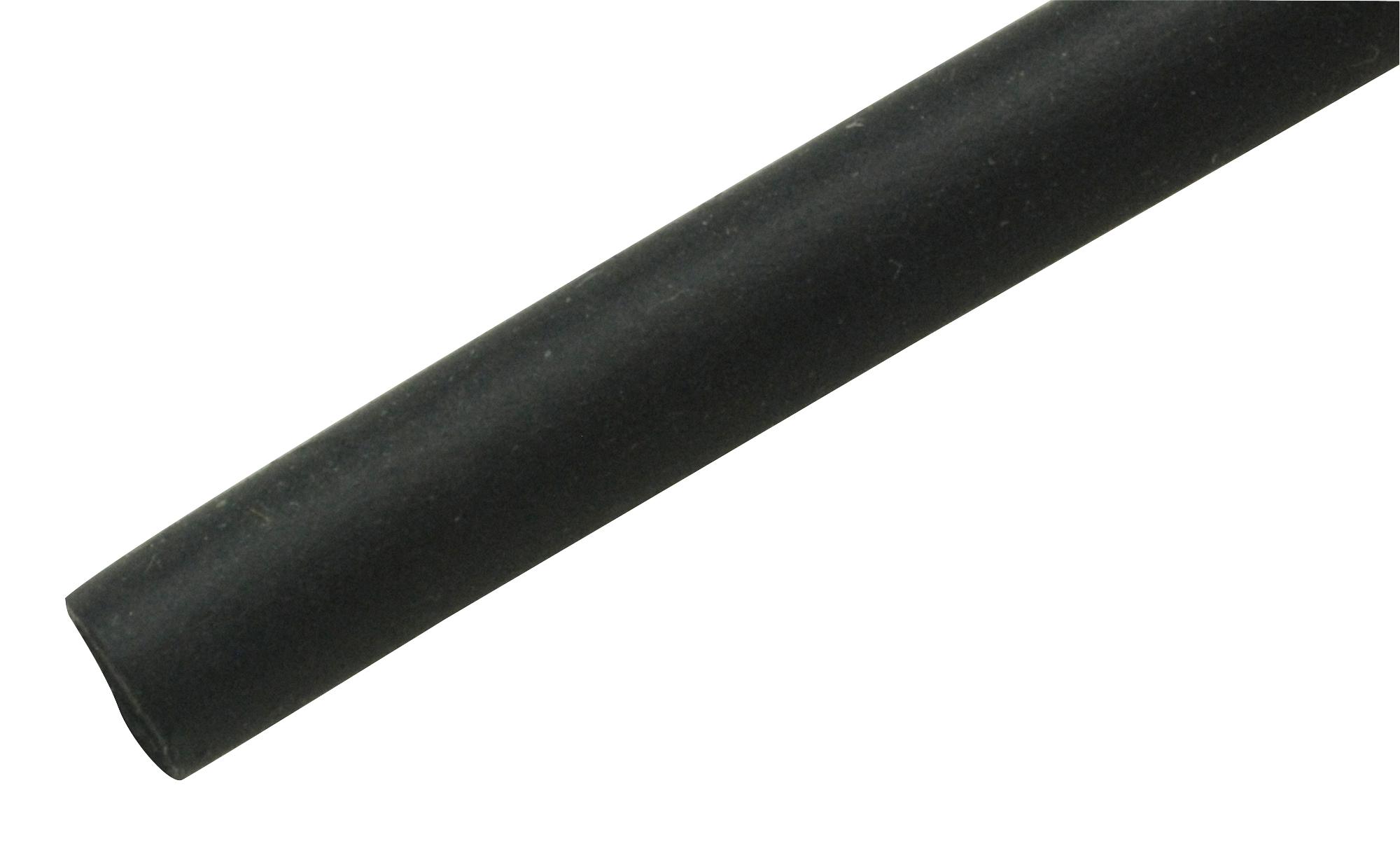

QUALTEK ELECTRONICS Q2F36401SS1000FT Heat Shrink Tubing
Heat shrink thin wall tubing offers flexible, flame-retardant electrical insulation suitable for both commercial and military uses. Operating between -55°C and +135°C, it provides high tensile strength, excellent resilience, and color-coding options for wires and components. This RoHS-compliant tubing, free of harmful PBBs and heavy metals, features a shrink ratio of 2:4, full recovery at 100°C, and meets UL, CSA, and SAE standards. Its dimensions are available in various sizes, ideal for insulation, bundling, and identification tasks in demanding environments.
QUALTEK ELECTRONICS Q2F36401SS1000FT Heat Shrink Tubing Specifications:
- Operating Temperature: -55°C to +135°C
- Shrink Ratio: 2:4
- Minimum Shrink Temperature: 70°C
- Full Recovery Temperature: 100°C
- Material: No PBBs, PBBOs, PBBEs, free of Cadmium & Lead
- Flammability: Meets vw-t-1
- Dielectric Strength: >20kV / mm
- Volume Resistance: >10^14 Ω·cm
- Tensile Strength: >14 MPa
- Ultimate Elongation: > 600%
- Eccentricity: <30%
- Standards: UL, CSA, SAE-AMS-DTL-23053/5 Class 1 & 3
- Approvals: ku File No. E236137, File No. 242540, 125°C, VW-1, 600V
- Color Options: Black, Red, Blue, Yellow, Green, White, Clear
- Dimensions Available: 12 mm to 127 mm diameter, various lengths, wall thickness from 0.40 mm to 0.68 mm
Buy the Qualtek Series Q2F Heat Shrink Thin Wall Tubing: Q2F36401SS1000FT
Get high-quality heat shrink tubing designed for electrical insulation, bundling, and component identification. This flame-retardant, RoHS compliant tubing shrinks at 100°C, with a ratio of 2:4, suitable for demanding industrial and military applications. Available in multiple sizes and colors, it offers excellent resilience, high tensile strength, and meets UL, CSA, and SAE standards. Perfect for wiring harnesses, protection of inline components, and color-coding tasks in challenging environments. Secure your order online today for fast, reliable delivery.
Order your Qualtek Series Q2F heat shrink thin wall tubing today and ensure reliable electrical insulation and component protection for your projects.
Frequently Asked Questions
Where can I buy QUALTEK ELECTRONICS Q2F36401SS1000FT?
You can click on the BUY or RFQ button to purchase Q2F36401SS1000FT from an authorized QUALTEK ELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part Q2F36401SS1000FT?
You can download the Q2F36401SS1000FT datasheet or visit the QUALTEK ELECTRONICS website for support.
Who is the manufacturer of Q2F36401SS1000FT?
QUALTEK ELECTRONICS
