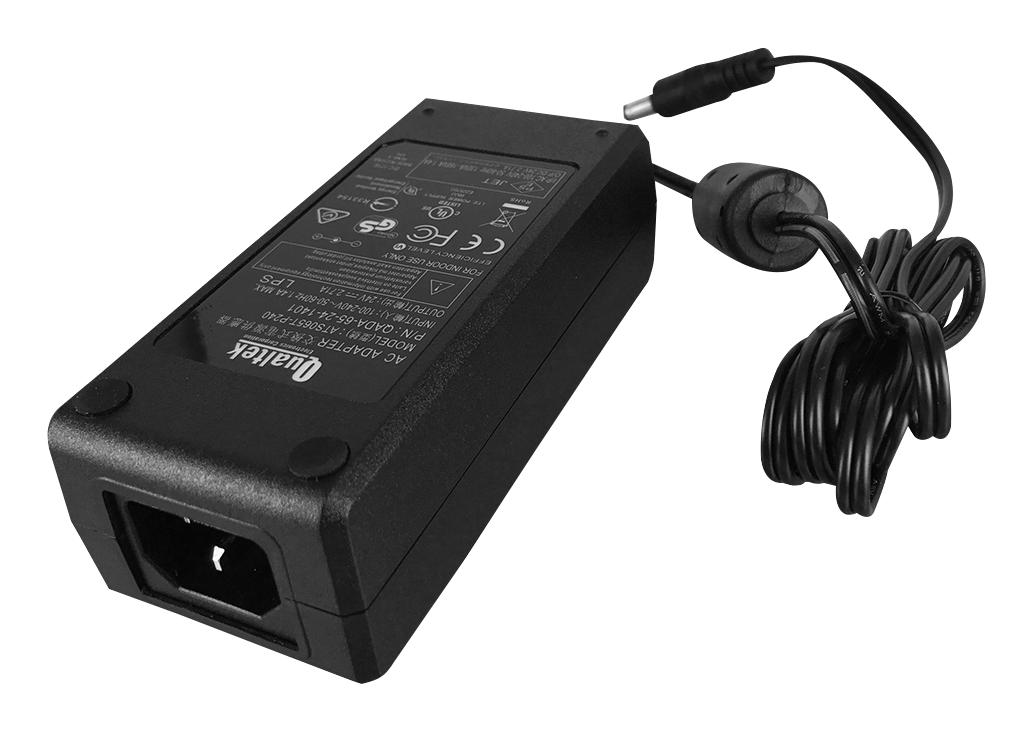

QUALTEK ELECTRONICS QADA65121401 power supply unit
The QADA-65/72 Series is a reliable single output desktop power supply providing 65W or 72W power with universal AC input and high energy efficiency. Designed to meet UL, IEC, and energy standards, it offers output protections such as overvoltage, overcurrent, and short circuit protection. This compact, switch-mode flyback topology unit features a wide input voltage range of 100VAC to 240VAC, with operating temperatures between 0°C and 40°C. It complies with EMI and harmonic standards, ensuring safe and efficient performance for industrial and commercial applications.
QUALTEK ELECTRONICS QADA65121401 power supply unit Specifications:
- Output Power: 65W or 72W
- Input Voltage Range: 100VAC~240VAC
- Frequency Range: 50Hz-60Hz
- Efficiency: DoE Level VI, Energy Star, ErP Step 2, NRCan & GEMS Level VI Certified
- Output Voltage: various models ranging from 3.3V to 48V
- Rated Current: up to 5.0A
- Ripple and Noise: +2% Vo @ Rated Load
- Load Regulation: 1+5%
- Transient Response: 0.5ms for 50% Load Change
- Hold-up Time: 10ms @ Rated Load
- Output Protections: OVP, SCP, OCP
- Input Protection: Internal Primary Current Fuse, Inrush Limiting
- Leakage Current: 0.25mA (2 Conductor), 3.5mA (3 Conductor)
- Operating Temperature: 0°C to 40°C
- Storage Temperature: -20°C to 80°C
- Dimensions: 115x53x38mm
- Weight: 310g
- Topology: Switching Flyback
- Dielectric Withstand: 3000VAC Primary-Secondary
- EMI: EN55022 Class B
- Harmonic Compliance: EN61000-3-2, 3
- MTBF: 300,000 hours
Buy the Qualtek Series QADA-65/72 Power Supply: QADA65121401
Upgrade your electronic setup with the Qualtek QADA-65/72 Series power supply, offering 65W or 72W output, universal AC input, and extensive protections. Compact and efficient, it complies with global energy standards such as UL, IEC, and Energy Star. Designed for industrial and commercial applications, this switch-mode flyback power supply features high reliability with an MTBF of 300,000 hours, EMI compliance, and a wide operating temperature range. Ensure your devices operate securely and efficiently with this high-quality power solution.
Buy Qualtek QADA65121401 now and experience unmatched reliability and performance in industrial power solutions with high efficiency and protections.
