QUALTEK ELECTRONICS QFWB1012US01 Power Supply

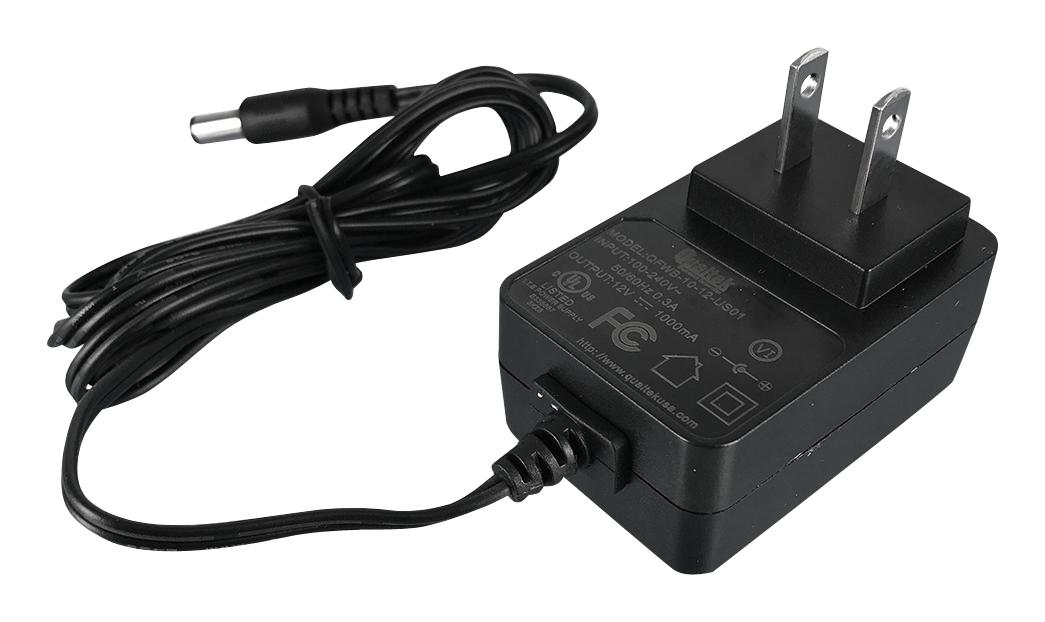

The QFWB-10 Series is a 10-watt single output wall mount power supply designed for reliable performance in various electronic applications. It features universal AC input (100-240VAC), energy efficiency Level VI, and comprehensive output protections including SCP and OCP. The power supply offers multiple voltage options from 5.9V to 36V, with high efficiency, low no-load power consumption (<0.1W), and a compact form factor measuring 59x40.9x26.5mm. Suitable for industrial, automation, and electronic device applications, it ensures optimal performance with a MTBF of 50,000 hours and compliance to international EMI and safety standards.
QUALTEK ELECTRONICS QFWB1012US01 Power Supply Specifications:
- Power: 10 Watts
- Input Voltage: 100VAC to 240VAC
- Output Voltage Options: 5.9V, 10V, 12V, 15V, 18V, 24V, 28V, 30V, 36V
- Rated Current: up to 2.1A
- Ripple and Noise: Max 200mV
- Efficiency: Level VI, Energy Star
- No Load Power Consumption: <0.1W
- Dimensions: 59x40.9x26.5mm
- Weight: 87g
- Operating Temperature: 0°C to 40°C
- Protection: Short Circuit, Over Current
- MTBF: 50,000 Hours
- Dielectric Withstand: 3000VAC
- EMI/EMC: EN55022 Class B, FCC Part 15 Class B
- Input Frequency Range: 50Hz-60Hz
- Environmental Humidity: 10% to 80% RH
Buy the Buy Qualtek 10 Watts Power Supply Part Number QFWB-10 Online
Purchase the Qualtek 10 Watts Power Supply online for your electronic or industrial applications. Featuring universal AC input, multiple output voltages, high efficiency Level VI certification, and robust protections. Its compact size and low no-load consumption make it ideal for space-constrained environments. Designed for reliability with a 50,000-hour MTBF, it safeguards your devices from short circuits and over-current conditions. Secure your power needs with this efficient, durable, and compliant power supply available now for quick online ordering.
Get Qualtek 10 Watts Power Supply today—built for durability with universal voltage range and high efficiency to ensure reliable performance in your projects.
