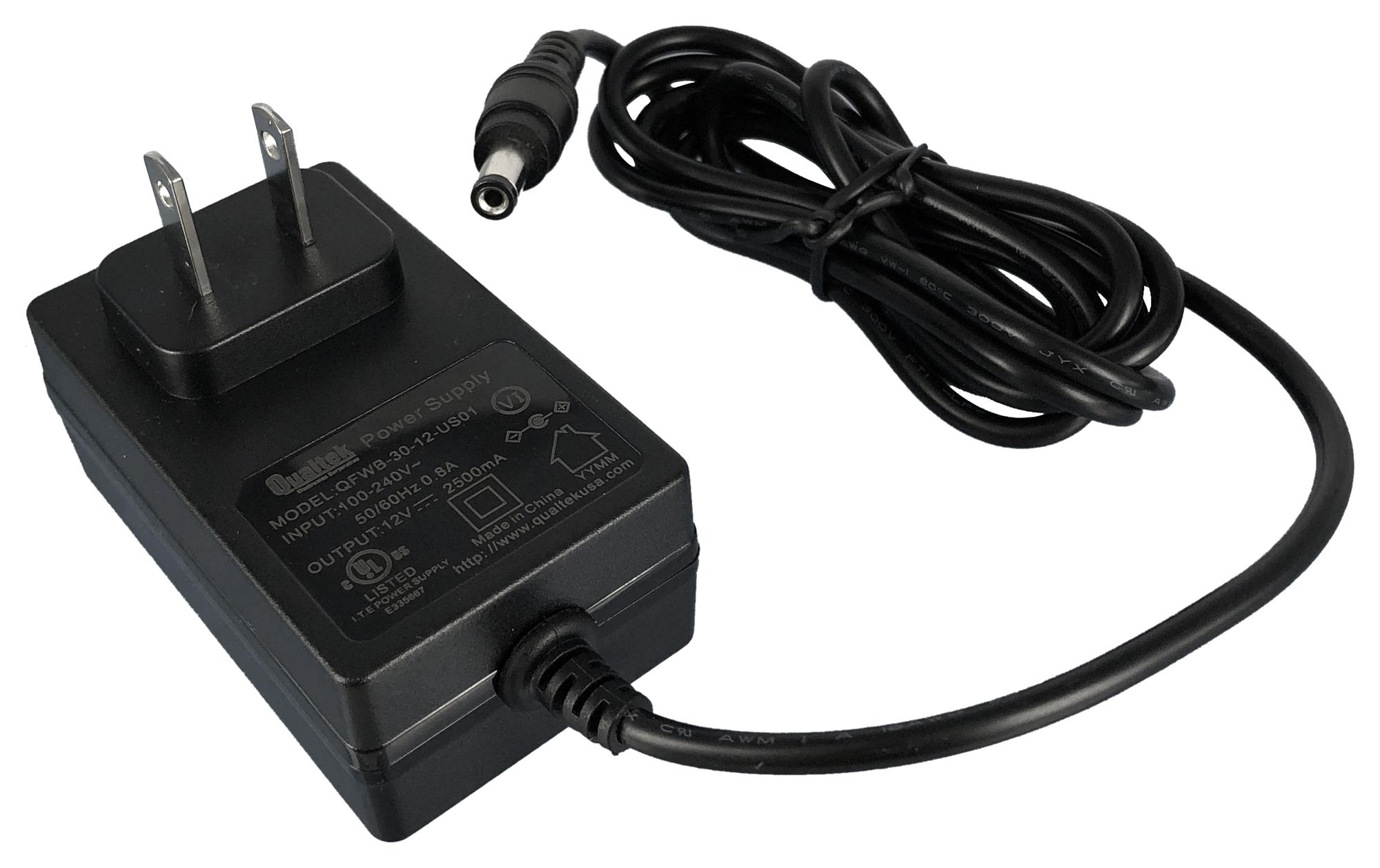

QUALTEK ELECTRONICS QFWB3012US01 Power Supply Device
The QFWB-30 series is a 30-watt single output wall mount power supply designed for reliable performance in various applications. Featuring universal AC input (100-240VAC), high energy efficiency at Level VI, and comprehensive protections including SCP and OCP, this compact switching flyback topology device offers outputs from 5V to 36V. It complies with EMI standards EN55022 Class B and FCC Part 15 Class B. The unit operates within 0°C to 40°C ambient temperature, has a 50,000-hour MTBF, and measures 71.3x43.3x28.8mm, weighing only 105g.
QUALTEK ELECTRONICS QFWB3012US01 Power Supply Device Specifications:
- Power: 30 Watts
- Input Voltage: 100VAC~240VAC
- Frequency Range: 50Hz-60Hz
- Efficiency: DoE Level VI, Energy Star
- Output Voltage Options: 5V, 9V, 12V, 15V, 18V, 24V, 36V
- Rated Current: 3.5A at 5.9V, 3.5A at 9V, 3.0A at 12V, 3.3A at 15V, 3.0A at 18V, 2.5A at 24V, 1.664A at 36V
- Ripple & Noise: Max 200mV
- Load Regulation: ±5%
- Turn-On Delay: Max 3s
- Hold-up Time: 10ms at 115VAC, 20ms at 230VAC
- Output Protections: Short Circuit and Over Current
- Operating Temperature: 0°C to 40°C
- Dimensions: 71.3 x 43.3 x 28.8mm
- Weight: 105g
- Dielectric Withstand: 3000VAC
- EMI Compliance: EN55022 Class B, FCC Part 15 Class B
- MTBF: 50,000 hours
Buy the Qualtek Series QFWB 30 Watts Power Supply: QFWB-30 Series
Purchase the Qualtek QFWB-30 series 30-watt power supply online today and enjoy a compact, reliable, and energy-efficient solution. Designed with universal input compatibility and multiple output options, it ensures stable power delivery for a wide range of applications. With comprehensive protections including SCP and OCP, this switching flyback power source meets international EMI standards, providing durability and peace of mind. Perfect for industrial, commercial, or DIY projects needing dependable power solutions.
Get Qualtek QFWB-30 Series power supply today—built for reliable performance and energy efficiency in your electronics projects.
Frequently Asked Questions
Where can I buy QUALTEK ELECTRONICS QFWB3012US01?
You can click on the BUY or RFQ button to purchase QFWB3012US01 from an authorized QUALTEK ELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part QFWB3012US01?
You can download the QFWB3012US01 datasheet or visit the QUALTEK ELECTRONICS website for support.
Who is the manufacturer of QFWB3012US01?
QUALTEK ELECTRONICS
