Qualtek Electronics QFWB55US01 Power Supply

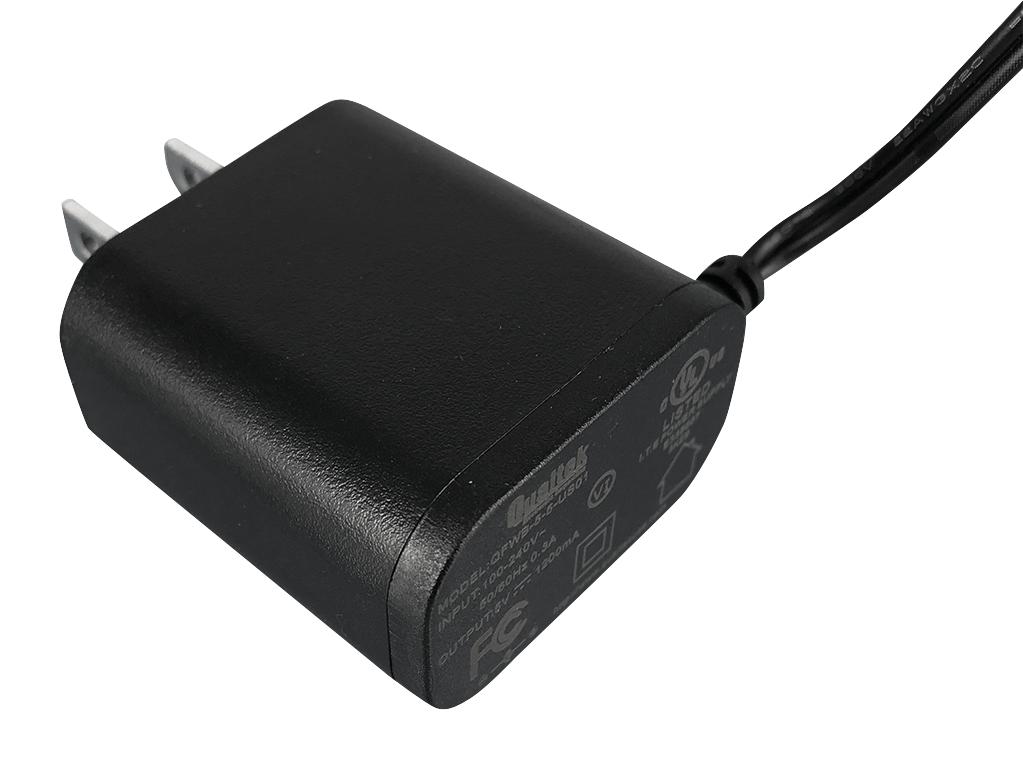

The QFWB-5 Series is a compact, 5-watt wall mount power supply designed for reliable operation in various electronic applications. It features universal AC input (100-240VAC), high energy efficiency at Level VI, and comprehensive output protections including SCP and OCP. With a lightweight construction measuring 42x23.7x42mm and an operating temperature range of 0°C to 40°C, it ensures safe and efficient power delivery. The flyback topology and dielectric withstand of 3000VAC enhance durability, making it ideal for industrial and consumer electronics requiring steady, regulated 5V output with minimal noise and high safety standards.
Qualtek Electronics QFWB55US01 Power Supply Specifications:
- Power Output: 5 Watts
- Input Voltage Range: 100VAC~240VAC
- Output Voltage: 5V
- Rated Current: 1.20A
- Ripple and Noise: Max 200mV
- Efficiency Level: VI, Energy Star
- Dimensions: 42x23.7x42mm
- Operating Temperature: 0°C to 40°C
- Sleep Power Consumption: <0.1W
- Output Protections: Short Circuit, Over Current
- Topology: Switching Flyback
- Dielectric Withstand: 3000VAC/10mA
- EMI Compliance: EN55022 Class B, FCC Part 15 Class B
- MTBF: 50,000 Hours
- Weight: 55.9g
- Input Protection: Internal Primary Current Fuse, Inrush Limiting
- Leakage Current: 0.25mA at 264VAC
- Environmental Conditions: Humidity 10-80%, Storage -20°C to 80°C
- Certifications: UL2468, ISO-9001
Buy the Qualtek Series QFWB-5 5W Power Supply: QFWB55US01
Purchase the Qualtek Series QFWB-5 5W wall mount power supply online today and enjoy dependable performance for your electronic devices. Its universal input 100-240VAC, high efficiency Level VI standard, and protective features ensure safe operation and consistent power delivery. Compact dimensions of 42x23.7x42mm make it ideal for space-constrained applications. With advanced EMI compliance, dielectric withstand of 3000VAC, and a MTBF of 50,000 hours, this power supply guarantees durability and peace of mind. Order now for fast delivery and reliable power management.
Order your Qualtek Series QFWB-5 5W power supply today and ensure your projects have reliable, efficient power with high safety standards.
Frequently Asked Questions
Where can I buy Qualtek Electronics QFWB55US01?
You can click on the BUY or RFQ button to purchase QFWB55US01 from an authorized Qualtek Electronics distributor.
How do I troubleshoot issues or seek technical support for part QFWB55US01?
You can download the QFWB55US01 datasheet or visit the Qualtek Electronics website for support.
Who is the manufacturer of QFWB55US01?
Qualtek Electronics
