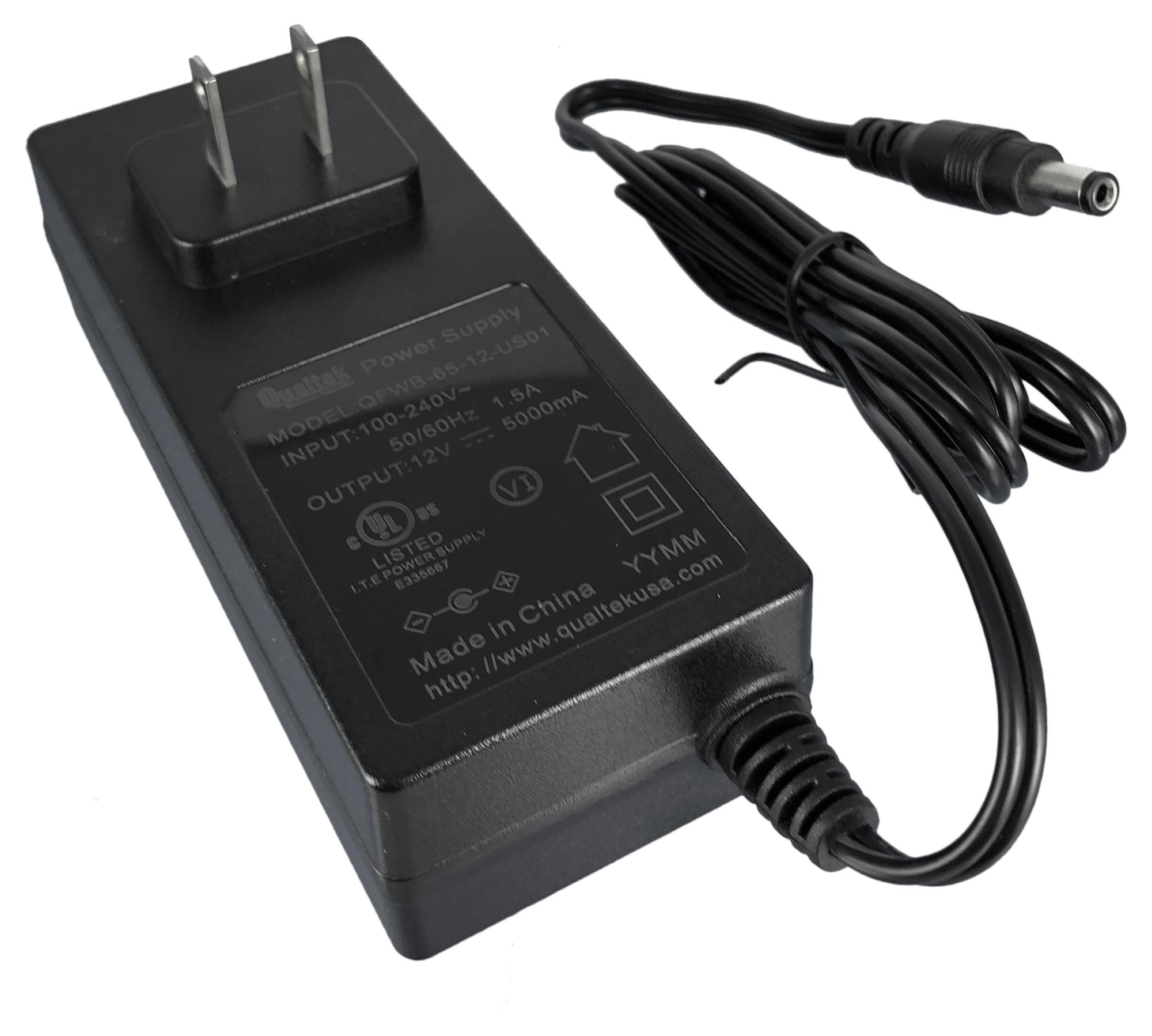

QUALTEK ELECTRONICS QFWB6512US01 Power Supply Module
The QFWB-65 series is a 65-watt single output wall mount power supply featuring universal AC input (100-240VAC) and high energy efficiency conforming to Level VI standards. It provides outputs ranging from 5.9V to 48V with rated currents up to 7A, ensuring reliable performance with low no-load power consumption below 0.1W. Equipped with short circuit and overcurrent protections, it supports multiple safety standards and EMI compliance. Mountable with dimensions of 117.3x50.3x33.5mm and a weight of 300g, this switching flyback topology device is suitable for industrial, automation, and control applications.
QUALTEK ELECTRONICS QFWB6512US01 Power Supply Module Specifications:
- Input Voltage Range: 100VAC~240VAC
- Frequency Range: 50Hz-60Hz
- Efficiency: DoE Level VI, Energy Star
- Output Voltage Options: 5.9V, 8V, 10V, 12V, 15V, 18V, 24V, 36V, 48V
- Rated Current: up to 7A depending on output voltage
- Ripple and Noise: Max 200mV
- Turn On Delay: Max 3 seconds
- Hold-up Time: 10ms at 115VAC, 20ms at 230VAC
- Output Protections: Short Circuit, Over Current
- Operating Temperature Range: 0°C to 40°C
- Storage Temperature Range: -20°C to 80°C
- Dimensions: 117.3 x 50.3 x 33.5 mm
- Weight: 300g
- Topology: Switching Flyback
- Dielectric Withstand: 3000VAC/10mA
- EMI Compliance: EN55022 Class B, FCC Part 15 Class B
- MTBF: 50,000 hours
- Environmental Ratings: humidity 10% RH to 80%, storage 5% RH to 95%
Buy the Qualtek QFWB-65 U+2013 Reliable Power Supply for Industrial Applications
Purchase the Qualtek QFWB-65 power supply online today for dependable performance in industrial, automation, and control systems. This 65-watt wall mount unit offers a universal input range, multiple output voltages from 5.9V to 48V, and rated currents up to 7A. It features high efficiency conforming to Level VI standards, low no-load power consumption, and comprehensive protective features including short circuit and overcurrent protection. Compact and lightweight, suitable for various applications requiring reliable and safe power delivery.
Buy Qualtek QFWB-65 now and experience unmatched reliability and performance with versatile output options and energy-efficient design.
Frequently Asked Questions
Where can I buy QUALTEK ELECTRONICS QFWB6512US01?
You can click on the BUY or RFQ button to purchase QFWB6512US01 from an authorized QUALTEK ELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part QFWB6512US01?
You can download the QFWB6512US01 datasheet or visit the QUALTEK ELECTRONICS website for support.
Who is the manufacturer of QFWB6512US01?
QUALTEK ELECTRONICS
