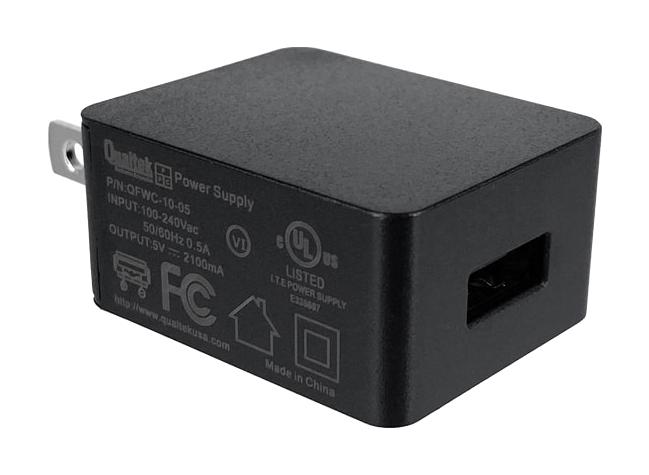

QUALTEK ELECTRONICS QFWC0505 USB Power Supply
The QFWC Series single output USB power supply offers a reliable 5V output with a rated current of 1A, 1.5A, or 2.14A depending on the model. It supports universal AC input (100V-264V) with high efficiency Level VI and features short circuit and overcurrent protections. Designed for various applications, it operates effectively within 0°C to 40°C ambient temperatures. Compact with dimensions of 41.5x35.4x23mm, it ensures high reliability with an MTBF over 50,000 hours, meeting UL safety standards and EMI compliance for safe, efficient operation.
QUALTEK ELECTRONICS QFWC0505 USB Power Supply Specifications:
- Input Voltage: 100VAC~264VAC
- Output Voltage: 5V
- Rated Current: 1A, 1.5A, 2.14A
- Current Range: 0~1A, 0~1.5A, 0~2.1A
- Ripple and Noise: Max 200mVp-p
- Leakage Current: Max 0.25mA
- Voltage Accuracy: 10%
- Line Regulation: ≤1.0%
- Load Regulation: 4.5%
- Efficiency Level: VI
- AC Current (Max): 1.20A
- Inrush Current (Max): 40A
- Protection: Over Current and Short Circuit Shutdown with auto recovery
- Operating Temperature: 0°C to 40°C with 10%~90% RH non-condensing
- Storage Temperature: -20°C to 80°C with 5%~90% RH non-condensing
- Dimensions: 41.5 mm x 35.4 mm x 23 mm
- Safety Standards: UL60950-1
- EMI Compliance: EN55032 Class B, FCC Part 15 Class B
- MTBF: Over 50,000 hours
Buy the Buy Electronics Corporation QFWC Series Part Number QFWC0505 Online
Purchase the QFWC Series USB power supply online for high efficiency, reliable operation, and essential protections. This compact, UL-rated device supports universal input (100V-264V) and provides a stable 5V output with current options of 1A, 1.5A, or 2.14A. Designed to meet EMI standards and operate effectively within 0°C to 40°C ambient temperature, it’s ideal for powering electronic devices in diverse environments. Order now to ensure consistent performance and safety for your projects.
Buy Electronics Corporation QFWC0505 now and experience high efficiency, compact size, and reliable performance for your electronic applications.
Frequently Asked Questions
Where can I buy QUALTEK ELECTRONICS QFWC0505?
You can click on the BUY or RFQ button to purchase QFWC0505 from an authorized QUALTEK ELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part QFWC0505?
You can download the QFWC0505 datasheet or visit the QUALTEK ELECTRONICS website for support.
Who is the manufacturer of QFWC0505?
QUALTEK ELECTRONICS
