RALTRON AS2500018FSMDTR Microprocessor Crystal
This high-precision surface-mount crystal provides reliable clock signals for CPU and microcontroller applications, with an extended temperature range from -40°C to +85°C. It operates from 3.20 MHz to 70.00 MHz, offering fundamental and third overtone modes. Designed for easy surface mounting, it features low profile dimensions, high frequency stability of up to #30 PPM, and low ESR characteristics. Ideal for timing, communications, and embedded systems, ensuring accurate, stable performance even in demanding industrial environments.
RALTRON AS2500018FSMDTR Microprocessor Crystal Specifications:
- Frequency range: 3.20 MHz to 70.00 MHz
- Oscillation modes: Fundamental 3.20 to 40.320 MHz, Third overtone 24.576 to 70.00 MHz
- Frequency tolerance at 25°C: #30 PPM typical, +50 PPM maximum
- Frequency stability over temperature: -20°C to +70°C standard, -40°C to +85°C extended
- Storage temperature range: -55°C to #125°C
- Aging: +5 PPM per year maximum
- Load capacitance: 10 pF to 32 pF or series
- ESR: up to 180 ohms at various frequencies
- Drive level: 0.1 mW typical
- Size: Low profile, approximately 3.0 mm to 4.6 mm height, surface-mount form factor
- Operating temperature: -40°C to +85°C
- Reflow conditions: 260°C for 10 seconds maximum
- Parts are shipped in bulk for quantities under 1,000 pieces
- Reel dimensions: 330 mm diameter, 24 mm tape width, 12 mm pitch, 1000 pieces per reel

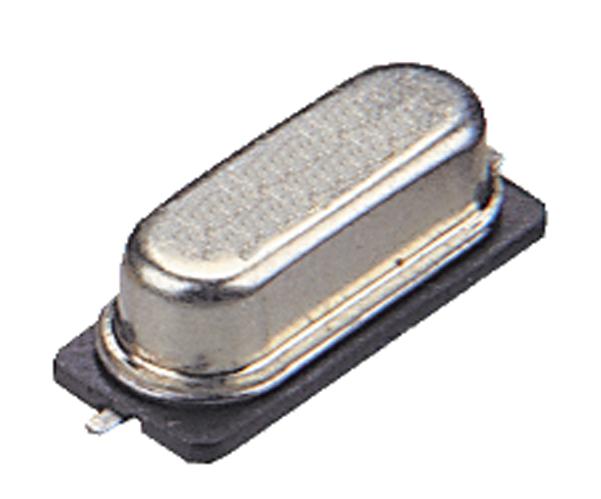

Buy the RALIRO HC-49/S – Reliable Crystal for Industrial Applications
Purchase the RALIRO HC-49/S surface-mount crystal online today and ensure your electronic systems operate with high precision and stability. Perfect for microcontrollers, timing circuits, and industrial applications, this crystal offers extended temperature range from -40°C to +85°C, frequency stability up to #30 PPM, and low ESR for consistent performance. Its low profile design allows easy surface mounting, reducing assembly time and costs. Enjoy quick delivery, secure online payments, and technical support to keep your projects on schedule.
Buy RALIRO HC-49/S low profile crystal now and experience unmatched reliability and performance in precise timing and clock generation.
Frequently Asked Questions
Where can I buy RALTRON AS2500018FSMDTR?
You can click on the BUY or RFQ button to purchase AS2500018FSMDTR from an authorized RALTRON distributor.
How do I troubleshoot issues or seek technical support for part AS2500018FSMDTR?
You can download the AS2500018FSMDTR datasheet or visit the RALTRON website for support.
Who is the manufacturer of AS2500018FSMDTR?
RALTRON
