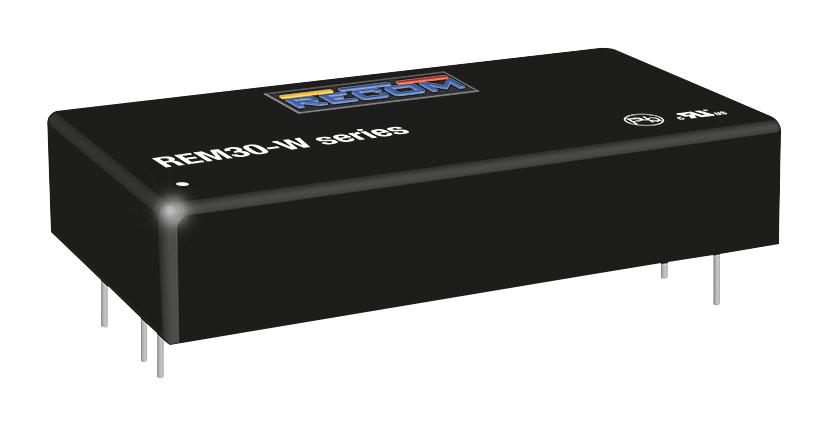

RECOM POWER REM302412SW Medical Power Supply
The REM30-W series of medical-grade regulated DC/DC converters offers reinforced SKVAC/1 minute isolation with low 2uA leakage, certified for 250VAC working voltage. The industry-standard 2”x1” package provides tightly regulated single and dual outputs, low ripple, and zero-load operation, with short circuit and overload protections. Certified to CB, IEC/EN, ANSI/AAMI standards, and UL marked, these converters are suitable for medical devices requiring reliable, isolated power supply solutions in demanding environments, ensuring safety and compliance across various healthcare applications.
RECOM POWER REM302412SW Medical Power Supply Specifications:
- Input Voltage Range: 9-36VDC or 18-75VDC
- Output Voltage Options: 5V, 12V, 15V, 24V with single or dual outputs
- Output Current: up to 6000mA depending on model
- Efficiency: 86% to 90% at full load
- Isolation Voltage: 250VAC continuous working voltage
- Leakage Current: 2uA typ. at 240VAC
- Isolation Resistance: ≥2GΩ
- Isolation Capacitance: ≤20pF
- Protection: Short circuit, overload, overvoltage, thermal shutdown
- Operating Temperature Range: -40°C to +105°C with derating
- Dimensions: 50.8 x 25.4 x 10.2mm
- Weight: approximately 32g
- Compliance: UL, CB, IEC/EN, ANSI/AAMI, UL62368-1, UL60950-1
- Certifications: UL Marked, IEC/EN 60601-1, AAMI ES60601-1
Buy the Recom REM30-2405 U+2013 Reliable Medical Power Supply for Medical Devices
Purchase the Recom REM30-2405 medical power supply online today and ensure your healthcare devices operate safely with certified, reliable power. Designed to meet strict medical standards, this DC/DC converter provides reinforced isolation, low leakage current, and robust protection features. Its compact industry-standard package fits easily into medical equipment designs, delivering stable output with low ripple and high efficiency. Invest in quality today and benefit from same-day shipping, easy ordering, and technical support to meet your medical device power requirements confidently.
Buy Recom REM30-2405 now and experience unmatched reliability and compliance for medical equipment power needs.
Frequently Asked Questions
Where can I buy RECOM POWER REM302412SW?
You can click on the BUY or RFQ button to purchase REM302412SW from an authorized RECOM POWER distributor.
How do I troubleshoot issues or seek technical support for part REM302412SW?
You can download the REM302412SW datasheet or visit the RECOM POWER website for support.
Who is the manufacturer of REM302412SW?
RECOM POWER
