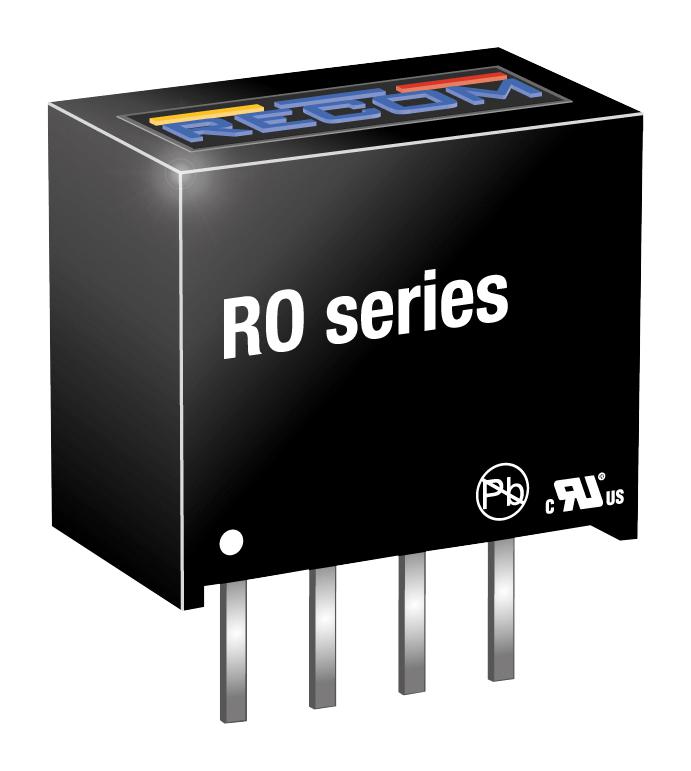

RECOM POWER RO0505S DC-DC Module
The RO series ECONOLINE unregulated DC/DC converter features a single output and is designed for general-purpose power isolation and voltage matching applications. It is fully encapsulated, provides 1 or 2 kVDC isolation, and offers up to 85% efficiency. The converter operates reliably across a broad industrial temperature range from -40°C to 85°C without needing derating. It has an industry-standard pin-out suitable for various applications, including signal processing and industrial environments.
RECOM POWER RO0505S DC-DC Module Specifications:
- Case Material: Non-conductive black plastic (UL94V-0)
- Potting Epoxy: UL94V-0
- PCB Material: FR4 (UL94V-0)
- Dimensions: 11.5 x 6.0 x 10.0mm
- Weight: 1.49g approx.
- Isolation Voltage: 1 or 2kVDC (with suffix '/H' or '/HP')
- Input Voltage Range: +10% of nominal
- Operating Temperature Range: -40°C to +85°C
- Efficiency: Up to 85%
- Operating Frequency: 50kHz to 105kHz
- Output Ripple and Noise: 100mVp-p at 20MHz BW
- Line Regulation: +1.2% to +2% over low to high line
- Load Regulation: 10% to 100% load, max 15%
- Safety Certifications: UL60950-1, EN60950-1, IEC60950-1
- EMC Compliance: EN55032, Class B
- Dimensions (LxWxH): 11.5 x 6.0 x 10.0mm
- Operating Humidity: up to 95% RH non-condensing
- Storage Temperature: -55°C to +125°C
- Maximum Case Temperature: +110°C
- Pollution Degree: PD2
- MTBF: approximately 4800 x 10^3 hours
- Isolation Resistance: ≥10 GΩ
- Isolation Capacitance: 20 pF min., 75 pF max.
- Input Protection: Not specified, recommend fuse for safety
Buy the Buy RECOM DC/DC Converter Series RO0505S Part Number RO0505S Online
Purchase your RECOM Series RO0505S DC/DC converter online today. This versatile, unregulated power module offers 1-2kVDC isolation, operates from -40°C to 85°C, and delivers up to 85% efficiency. Its compact design fits various industrial applications, including signal processing and automation systems. With industry-standard pinout, robust safety certifications, and excellent EMI compliance, it ensures dependable performance in demanding environments. Order now and enhance your power isolation and voltage matching needs with this high-quality converter.
Order your RECOM Series RO0505S DC/DC Converter today and equip your projects with reliable, industrial-grade power solutions.
