RENESAS 9ZXL1930DKILF Differential Buffer
The 9ZXL1930D and 9ZXL1950D are high-performance, second-generation differential buffers designed for PCIe Gen1-4 and UPI applications. They feature pin-compatible upgrades with improved phase jitter performance. The devices support various PCIe clocking architectures, including Common Clocked and Independent Reference modes, and are optimized for server, storage, networking, and SSD applications. Equipped with low-power HCSL outputs, SMBus control, spread spectrum compatibility, and small 10x10mm VFQFPN packages, these buffers deliver low jitter, skew, and delay variation for critical signal integrity needs.
RENESAS 9ZXL1930DKILF Differential Buffer Specifications:
- Outputs: 19 Low-Power HCSL (LP-HCSL) pairs, with options including 850 Zout
- Cycle-to-cycle jitter: less than 50 ps
- Output skew: less than 50 ps
- Input-output delay: fixed, variation less than 50 ps
- Additive phase jitter: PCIe Gen4 < 53 fs rms, UPI < 70 fs rms
- Package: 10x10 mm VFQFPN, 0.50mm pitch
- Operating temperature range: -40°C to +85°C
- SMBus addresses: 9 selectable, software-controlled PLL bandwidth and bypass modes
- Spread spectrum: compatible for EMI reduction
- Supply Voltages: Vppx=3.9 V maximum, VDD=3.3 V typical
- Jitter performance across different PCIe and UPI standards, detailed in jitter tables
- Differential clock inputs with optimized slew rates and crossing voltages

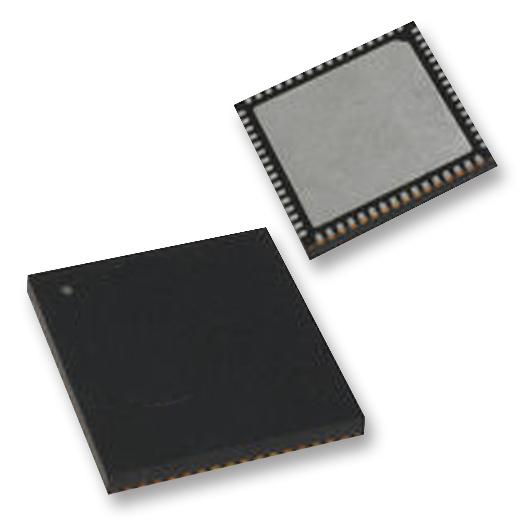

Buy the Buy IDT 9ZXL1930D High-Performance Buffer Part Number 9ZXL1930DKILF Online
Purchase the IDT 9ZXL1930DKILF differential buffer online to ensure robust PCIe Gen1-4 and UPI signal integrity. Designed for servers, storage, and networking, it features low jitter below 50 ps, SMBus control, spread spectrum EMI reduction, and compact VFQFPN packaging measuring 10x10 mm. These buffers support various clocking architectures with fixed delays and minimal skew, making them ideal for high-speed digital systems demanding precision and reliability. Buy now for long-lasting, high-performance signal management.
Get IDT 9ZXL1930DKILF today—built for precision, low jitter, and long-lasting durability in high-speed server and storage applications.
Frequently Asked Questions
Where can I buy RENESAS 9ZXL1930DKILF?
You can click on the BUY or RFQ button to purchase 9ZXL1930DKILF from an authorized RENESAS distributor.
How do I troubleshoot issues or seek technical support for part 9ZXL1930DKILF?
You can download the 9ZXL1930DKILF datasheet or visit the RENESAS website for support.
Who is the manufacturer of 9ZXL1930DKILF?
RENESAS
