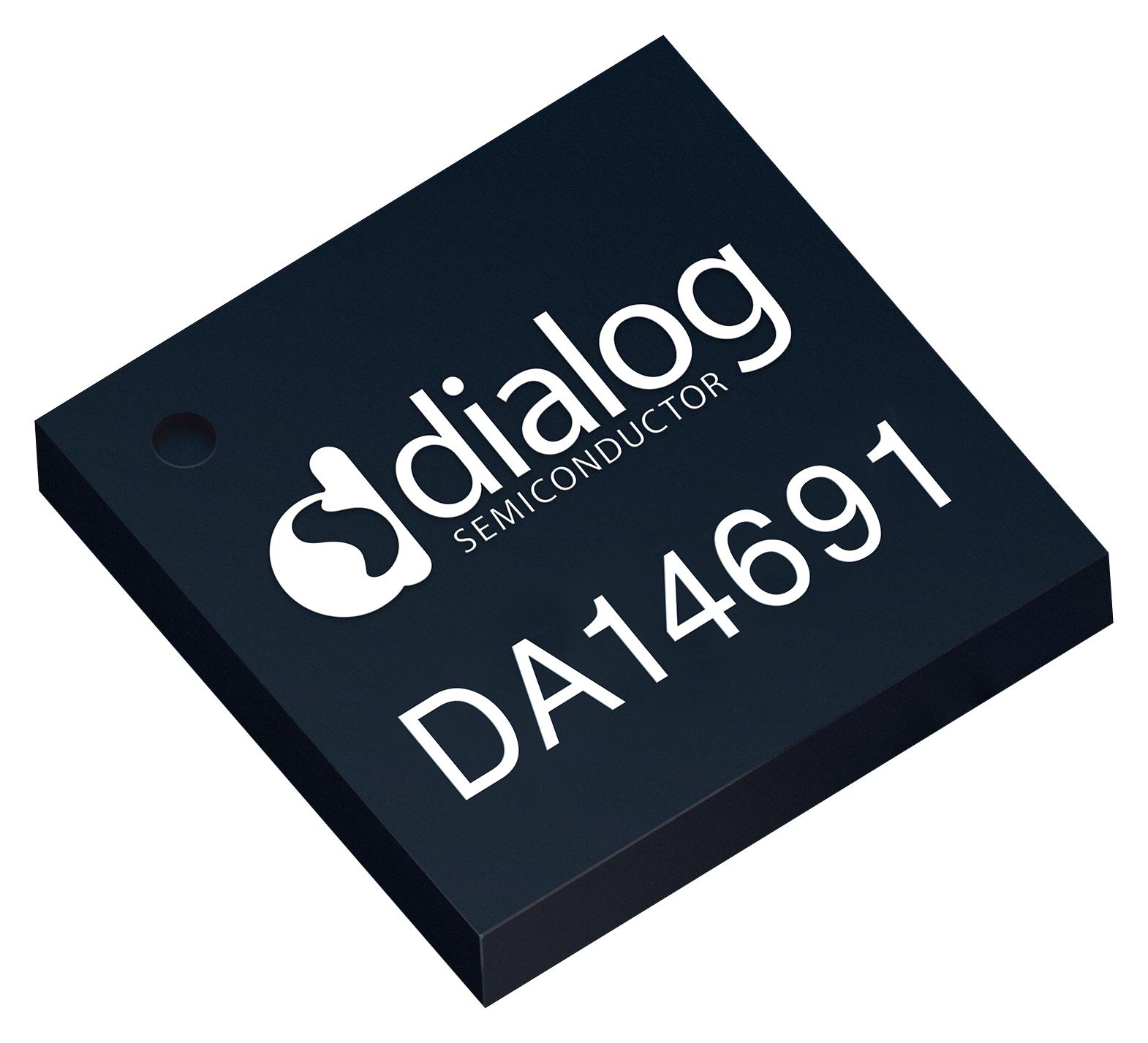

RENESAS DA1469100000HQ2 Wireless Microcontroller
The DA1469x family is a multi-core BLE 5.1 System-on-Chip with integrated peripherals, including ARM Cortex-M33 CPU, cryptography, external memory controllers, ADC, and RF transceivers, suitable for low-power wireless applications. It features flexible power domains, quiescent currents, and hardware accelerators for encryption, hashing, and random number generation, supporting advanced sleep modes, battery management, and external interfaces like UART, SPI, I2C, and USB for versatile system integration.
RENESAS DA1469100000HQ2 Wireless Microcontroller Specifications:
- ARM Cortex-M33 CPU, up to 144 dMIPS, 32-bit
- Cryptography Engine supporting AES-256, SHA-512, HMAC
- 128KB ROM with bootloader and security routines
- 512KB shared data RAM, with power gating and retention
- Two SPI controllers supporting XiP with decrypt on-the-fly
- I2C Master/Slave interfaces, up to 2.9 Mbps
- 7 Low power modes: Active, Sleep, Deep Sleep, Hibernation, etc.
- Power management through independent power domains
- USB full-speed device with 7 endpoints, support for FS/LS
- RF transceiver at 2.4 GHz supporting BLE 5.1, 6 dBm max output power
- Audio interface supporting PDM, PCM, SRC for microphone and speaker
- Supports external memory (Qspi RAM/Flash, PSRAM)
- On-chip random number generator (TRNG), 1024 bits output
- Multiple timers, I2C, UART, and peripherals with DMA support
- Secure boot, key management, and secure key storage via OTP
Buy the Dialog DA1469x – Reliable Wireless Microcontroller for Industrial Applications
Purchase the Dialog DA1469x wireless microcontroller today—engineered for IoT and industrial wireless solutions. It features ARM Cortex-M33 core, security hardware, extensive peripherals, flexible power management, and BLE 5.1 support. Designed for ultra-low power operation, it offers integrated cryptography, multiple communication interfaces, timers, RAM retention, and advanced sleep modes. Perfect for building reliable, energy-efficient wireless systems across industrial, medical, and consumer markets. Secure, flexible, and ready for seamless integration into your design.
Get Dialog DA1469x today—built for low-power Bluetooth applications with flexible power domains, cryptography acceleration, and extensive interfaces.
