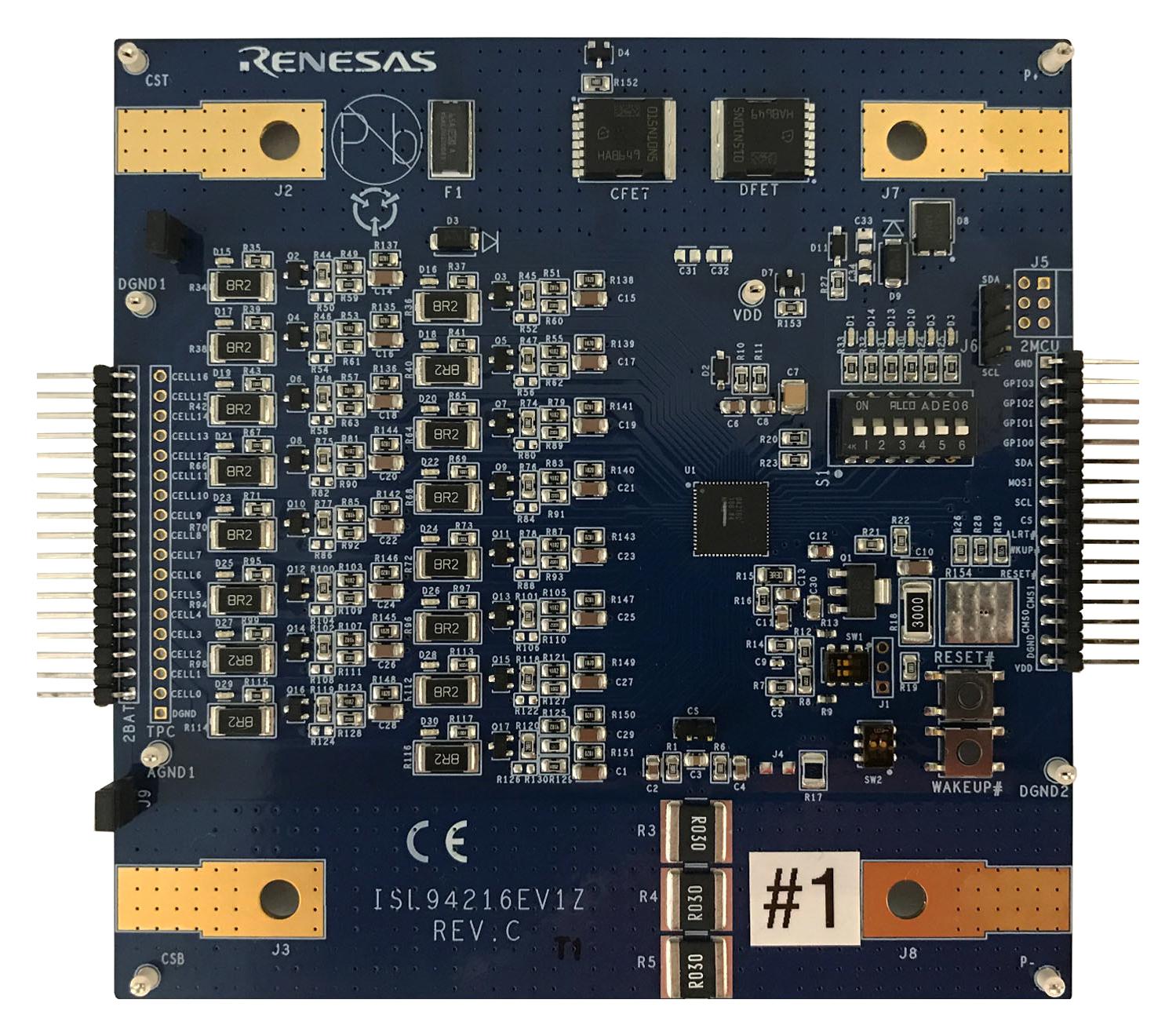

RENESAS ISL94216EVKIT1Z Battery Monitoring Board
The ISL94216 evaluation kit includes a GUI tool developed on Excel with VBA to assess the high-precision 16-cell battery front end IC. Designed for battery management systems, it monitors cell voltages, temperatures, and environmental parameters in 4S to 16S packs, ideal for e-bikes, energy storage, and mobility applications. The kit comprises the evaluation board, USB interface dongle, and a resistor ladder for simulating a battery pack. Its features include high hot plug rating of 62V, 16-bit measurement accuracy, adjustable cell balancing, and supporting I2C, SPI, and single wire protocols, all housed in a compact 64-QFN package with thermal pad.
RENESAS ISL94216EVKIT1Z Battery Monitoring Board Specifications:
- Supports 4S to 16S battery packs
- Maximum voltage: 55V (supporting 12V to 55V packs)
- Measurement resolution: 16-bit accuracy for cell voltage, temperature, and pack parameters
- High hot plug rating: 62V
- Voltage measurement accuracy: ±5mV
- Measurement error: 0.2% typical
- Supports I2C, SPI, and Single Wire protocols for microcontroller integration
- Low power consumption: idle mode current of 200μA, ship mode less than 18μA
- Cell balancing circuitry with 8mA per cell, external balancing optional
- Array of 16 cell voltage inputs, pack voltage, current sense, and temperature inputs
- An integrated 3.3V regulator for system power supply
- Operating temperature: -40°C to +85°C
- Package: 64-LD QFN with thermal pad
- Includes evaluation board, GUI software, communication dongle, and resistor ladder for simulation
Buy the Renesas Series ISL94216 Battery Front End IC: EVKIT1Z
Purchase the Renesas Series ISL94216 evaluation kit EVKIT1Z online today. This comprehensive package includes a high-precision 16-cell battery front end IC with versatile protocols, simulation accessories, and easy-to-use GUI software. Perfect for evaluating, prototyping, and developing advanced battery management solutions for energy storage, e-mobility, and robotics. Enhance your project with reliable measurement accuracy, efficient power management, and flexible protocol support. Secure your EVKIT1Z now to streamline your development process and ensure optimal battery performance.
Order your Renesas Series ISL94216 evaluation kit EVKIT1Z today and give your projects the dependable high-accuracy monitoring and control they deserve.
