RENESAS P9242RNDGI Wireless Power Transmitter
The P9242-R is a highly integrated wireless power transmitter supporting up to 15W, operating with an input voltage range of 4.25V to 21V. It includes a 32-bit ARM Cortex-M0 processor for high programmability and low standby power. Features include integrated regulators, communication via I2C, multiple protection circuits, various LEDs for status indication, foreign object detection, and compliance with WPC-1.2 standards. The device is housed in a small 48-VFQFN package suitable for wireless charging pads and accessories, with thermal management and over-current protections ensuring safety and efficiency.
RENESAS P9242RNDGI Wireless Power Transmitter Specifications:
- Power transfer up to 15W
- Wide input voltage range: 4.25V to 21V
- Operating temperature range: -40°C to +85°C
- Package: 48-VFQFN (6 x 6 mm)
- Includes integrated step-down regulator, LDOs for biasing
- Supports WPC-1.2, MP-A2 coil configuration
- Compliance with safety and foreign object detection standards
- Includes I2C interface for communication
- Thermal shutdown at 140°C, resumes below 120°C
- Input current during power transfer: approx. 10mA
- Envelope detector for data demodulation, ASK and FSK communication protocols
- Mechanical and electrical protections for safe operation
- RoHS-compliant lead-free package, rated for -40°C to +85°C ambient temperature

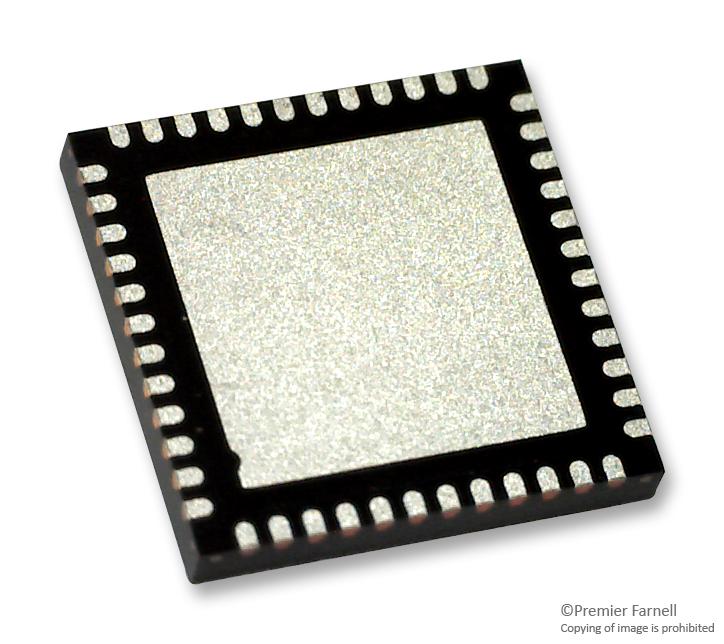

Buy the IDT P9242-R – Reliable Wireless Power Transmitter for Industrial Applications
Get the IDT P9242-R wireless power transmitter now to enhance your wireless charging products. Supporting up to 15W with wide input voltage and built-in protections, this compact 48-VFQFN device is ideal for industrial applications like charging pads and accessories. Its embedded ARM processor allows for high programmability, ensuring flexible operation. With advanced foreign object detection, thermal management, and high efficiency, the P9242-R guarantees safe, reliable, and compliant wireless power transfer. Purchase online now and integrate superior wireless charging technology into your designs effortlessly.
Order your IDT P9242-R Wireless Power Transmitter today and give your projects the dependable, efficient wireless charging solution they deserve.
Frequently Asked Questions
Where can I buy RENESAS P9242RNDGI?
You can click on the BUY or RFQ button to purchase P9242RNDGI from an authorized RENESAS distributor.
How do I troubleshoot issues or seek technical support for part P9242RNDGI?
You can download the P9242RNDGI datasheet or visit the RENESAS website for support.
Who is the manufacturer of P9242RNDGI?
RENESAS
