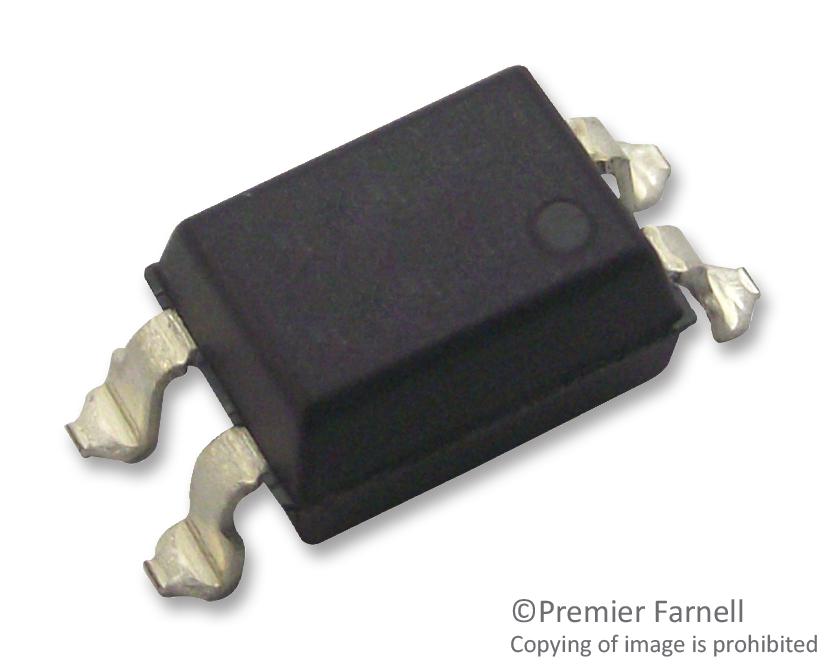

RENESAS PS28011F3A High Isolation Optocoupler
The PS2801-1 and PS2801-4 are high isolation voltage SSOP optocouplers with GaAs LED and NPN phototransistor, ideal for high-density applications. These compact, thin packages offer shield effects to block ambient light, ensuring stable operation. They feature a high isolation voltage of 2500 V, a collector-emitter voltage of 80 V, and high-speed switching capabilities with typical turn-on and turn-off times of 3 μs and 5 μs respectively. Suitable for programmable logic controllers, measuring instruments, and power supplies, they meet UL, CSA, and VDE safety standards.
RENESAS PS28011F3A High Isolation Optocoupler Specifications:
- Isolation Voltage: 2500 V rms
- Collector to Emitter Voltage: 80 V
- Emitter to Collector Voltage: 6 V
- Power Dissipation: 60–80 mW per channel
- Operating Temp Range: -55°C to +100°C
- Storage Temp Range: -55°C to +150°C
- Rise Time: 3 μs, Fall Time: 5 μs (typical)
- Package: SSOP, Pin pitch 1.27 mm
- Dimensions: Length approx. 4.16 mm (PS2801-1), 10.3 mm (PS2801-4), width and height as per datasheet
- Tra nsistor CTR: 80-600%, depending on model
- Certifications: UL, CSA, BSI (option), VDE (option)
- Application: PLCs, measuring instruments, power supplies, hybrid ICs
Buy the Buy Renesas PS2801-1 High Isolation Voltage SSOP Optocoupler Part Number PS2801-1 Online
Purchase the Renesas PS2801-1 high isolation voltage SSOP optocoupler online today. Designed for high-density applications, it features 2500 V isolation, fast switching times, and complies with UL, CSA, and VDE safety standards. Its compact form factor makes it ideal for PLCs, measuring instruments, and power supplies. With high collector-emitter voltage of 80 V and shielded package, this optocoupler ensures stability and safety in demanding industrial environments. Buy now to enhance your system’s reliability and performance.
Buy Renesas PS2801-1 now and experience unmatched reliability and high-speed switching for industrial and automation applications.
