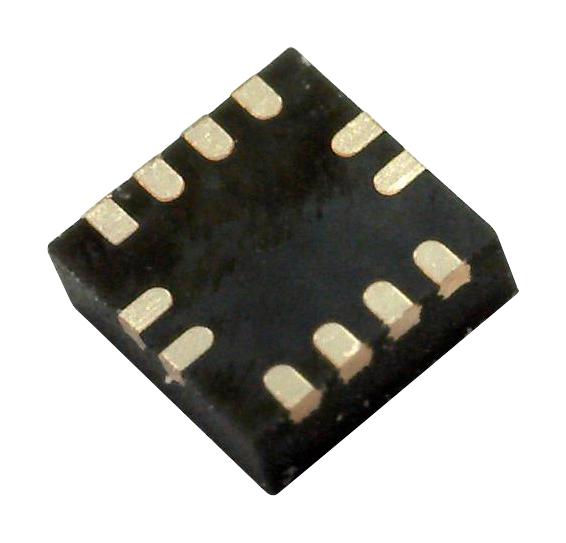

RENESAS SLG46120V Programmable Mixed Signal IC
The SLG46120V is a GreenPAK™ programmable mixed-signal matrix integrated circuit housed in a 12-pin STQFN package. It offers a compact, low-power solution for a variety of mixed-signal functions. Users can program its non-volatile memory (NVM) to configure interconnect logic, I/O pins, and internal macrocells, enabling the design of diverse mixed-signal circuits within a small form factor. Features include four combinatorial LUTs, twelve macro cells, two counter/delay generators, eight D flip-flops/latches with a pipeline delay of up to eight stages, an RC oscillator, and power-on reset functionality. The device operates over a voltage range of 1.8V to 5V and withstands temperatures from -40°C to 85°C.
RENESAS SLG46120V Programmable Mixed Signal IC Specifications:
- Package: 12-pin STQFN 1.6x1.6x0.55 mm with 0.4 mm pitch
- Supply Voltage: 1.8V to 5V
- Operating Temperature: -40°C to 85°C
- Power Consumption: Low power design
- Logic Resources: 4 LUTs (2-bit and 3-bit), 12 macro cells
- Counters/Delays: 2 (8-bit and 14-bit), programmable
- Flip-Flops/Latches: 8, with pipeline delay up to 8 stages
- Oscillator: RC oscillator (25 kHz and 2 MHz selectable)
- Reset: Power-on reset, power-down reset
- RoHS compliant, halogen-free, Pb-free
- Application: industrial, consumer electronics, data communication, portable electronics
Buy the Dialog SLG46120V – Reliable Programmable Mixed Signal Matrix for Industrial Applications
Discover the flexibility and low power consumption of the Dialog SLG46120V programmable mixed signal IC. Featuring four logic LUTs, twelve macro cells, counters, flip-flops, and an RC oscillator, it provides a comprehensive solution for designing compact, efficient mixed-signal circuits. Suitable for industrial, consumer, and communication applications, this device operates from 1.8V to 5V and tolerates temperatures from -40°C to 85°C. Easily programmable via non-volatile memory, it ensures reliable, long-term performance in your critical projects.
Order your Dialog SLG46120V series low-power programmable mixed-signal IC today and give your projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy RENESAS SLG46120V?
You can click on the BUY or RFQ button to purchase SLG46120V from an authorized RENESAS distributor.
How do I troubleshoot issues or seek technical support for part SLG46120V?
You can download the SLG46120V datasheet or visit the RENESAS website for support.
Who is the manufacturer of SLG46120V?
RENESAS
