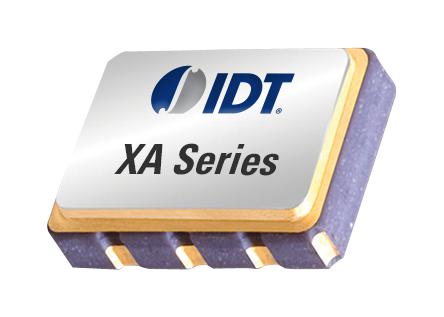

RENESAS XAH335006005284K Crystal Oscillator
The IDT XA series are ultra-precision crystal oscillators offering ultra-low phase jitter of 750fs to 890fs over 12kHz to 20MHz bandwidth. These oscillators operate across a frequency range from 0.750MHz to 1350MHz, utilizing proprietary ASICs with noise reduction technologies comparable to Bulk Quartz and SAW oscillators. Features include tight stability options up to +25ppm, wide temperature ranges, and various output types including LVDS, LVPECL, and LVCMOS. They are designed for high-performance applications requiring low jitter, low noise, and rapid delivery with excellent ambient stability.
RENESAS XAH335006005284K Crystal Oscillator Specifications:
- Frequency range: 0.750MHz to 1350MHz
- Output types: LVDS, LVPECL, LVCMOS
- Phase jitter: 750fs to 890fs (12kHz to 20MHz)
- Frequency stability: +25ppm, +50ppm, or +100ppm
- Supply voltage: 2.5V or 3.3V
- Operating temperature: -40°C to +85°C (Grade 3), -40°C to +105°C (Grade 2)
- Package options: 6-pin and 4-pin packages
- Absolute maximum ratings: Vpp -0.5 to +5.0V, Storage temperature -55°C to 125°C
- ESD: 1000V HBM, 150V MM
- Mechanical shock and vibration resistant, suitable for industrial and aerospace environments
Buy the IDT Series XA Crystal Oscillators: XAH335006005284K
Order IDT XA crystal oscillators today and benefit from ultra-low phase jitter, broad frequency coverage, and various output options for high-precision systems. With robust stability options up to +25ppm and operating temperature ranges from -40°C to +105°C, these oscillators are ideal for demanding industrial, communications, and aerospace applications. Featuring fast delivery, cost-effective solutions, and compatibility with multiple output types including LVDS, LVPECL, and LVCMOS, purchasing online ensures prompt access to reliable, high-performance oscillator products.
Buy IDT XA crystal oscillators now and experience unmatched low jitter, wide frequency range, and reliable high-stability performance for your critical applications.
