ROHDE---SCHWARZ RTB2004 Digital Oscilloscope

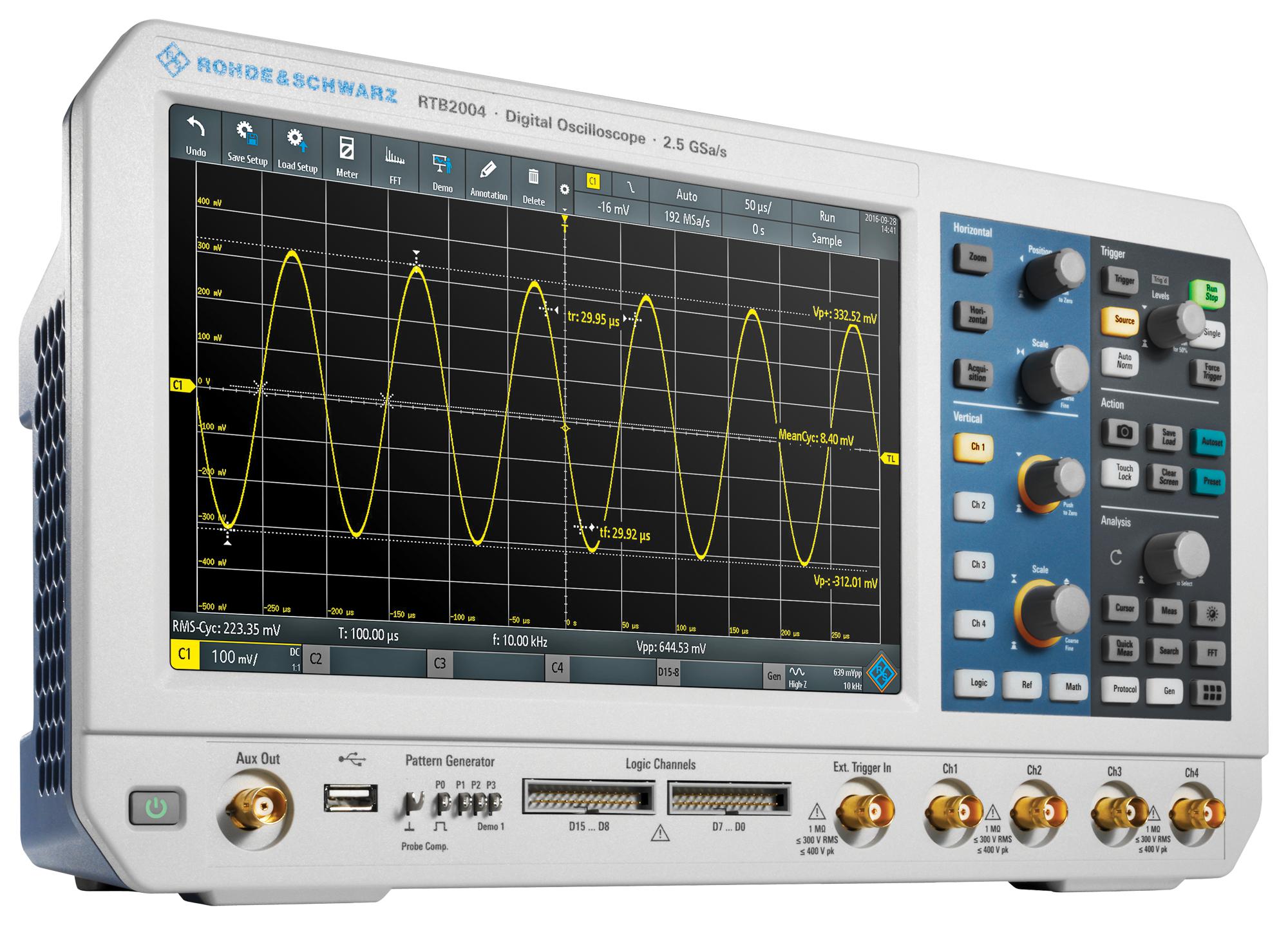

The Rohde & Schwarz RTB2004 is a four-channel digital oscilloscope with a 10.1-inch high-resolution capacitive touchscreen display supporting gestures. It features a 10-bit ADC for sharper waveforms, 10 Msamples memory with interleaved 20 Msamples, and a fast update rate of 50,000 waveforms/sec. With sensitivity down to 1 mV/div, full bandwidth measurement, and low noise, it offers advanced math functions, autoset, and multiple trigger options. Connectivity includes USB, LAN, and web server. Compact and portable, it measures 390mm x 220mm x 152mm, weighing 2.5 kg, ideal for labs, development, and production testing environments.
ROHDE---SCHWARZ RTB2004 Digital Oscilloscope Specifications:
- Display: 10.1-inch capacitive touchscreen, 1280 x 800 pixels
- Sampling rate: 1.25 GSamples/sec
- Memory: 10 Msamples standard, 20 Msamples interleaved
- Bandwidth: Full bandwidth measurement
- Input channels: Four
- Sensitivity: Down to 1 mV/div
- Trigger types: Edge, width, video, pattern, line, serial bus
- Connectivity: USB, LAN, web server
- Dimensions: 390mm x 220mm x 152mm
- Weight: 2.5 kg
- Additional features: Math functions, autoset, low noise performance
Buy the Buy Rohde & Schwarz RTB2004 Oscilloscope Part Number RTB2004 Online
Purchase the Rohde & Schwarz RTB2004 digital oscilloscope online and experience cutting-edge measurement technology. With a high-resolution touchscreen, 10-bit ADC, extensive memory, and fast waveform update rate, it ensures precise signal analysis. Simple connectivity options like USB, LAN, and web server enable remote operation. Its compact design makes it suitable for laboratory, development, and production use. Secure your testing setup with this robust, portable, and high-performance oscilloscope from a trusted brand—order now for reliable, professional results.
Get Rohde & Schwarz RTB2004 today—built for precision measurement and reliable performance in testing environments.
Frequently Asked Questions
Where can I buy ROHDE---SCHWARZ RTB2004?
You can click on the BUY or RFQ button to purchase RTB2004 from an authorized ROHDE---SCHWARZ distributor.
How do I troubleshoot issues or seek technical support for part RTB2004?
You can download the RTB2004 datasheet or visit the ROHDE---SCHWARZ website for support.
Who is the manufacturer of RTB2004?
ROHDE---SCHWARZ
